GPC Fabricated Heavy Duty Castors (HDFC)
| SKU | Product | 1+ Prices include VAT Prices exclude VAT | Quantity | |
|---|---|---|---|---|
| PFL125CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Cast Iron - Fixed | £42.66 £35.55 | ||
| PFL100NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Nylon - Fixed | £43.61 £36.34 | ||
| PFL125NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Nylon - Fixed | £43.66 £36.38 | ||
| PFL100CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Cast Iron - Fixed | £44.50 £37.08 | ||
| PSL100NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Nylon - Swivel | £50.33 £41.94 | ||
| PSL100CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Cast Iron - Swivel | £51.74 £43.12 | ||
| PSL125NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Nylon - Swivel | £51.90 £43.25 | ||
| PSL125CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Cast Iron - Swivel | £54.73 £45.61 | ||
| PSL150CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Cast Iron - Swivel | £56.78 £47.32 | ||
| PFL200CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Cast Iron - Fixed | £56.78 £47.32 | ||
| PSL100CIBJBR | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Cast Iron - Swivel Braked | £58.04 £48.37 | ||
| PFL100PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Polyurethane - Fixed | £58.04 £48.37 | ||
| PFL150CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Cast Iron - Fixed | £58.09 £48.41 | ||
| PFL200NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Nylon - Fixed | £58.78 £48.98 | ||
| PSL125CIBJBR | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Cast Iron - Swivel Braked | £59.20 £49.33 | ||
| PSL100NYBJBR | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Nylon - Swivel Braked | £59.41 £49.51 | ||
| PSL150NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Nylon - Swivel | £59.77 £49.81 | ||
| PSL125NYBJBR | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Nylon - Swivel Braked | £60.56 £50.47 | ||
| PFL125PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Polyurethane - Fixed | £61.14 £50.95 | ||
| PFL150NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Nylon - Fixed | £61.14 £50.95 | ||
| PSL150CIBJBR | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Cast Iron - Swivel Braked | £63.50 £52.92 | ||
| PSL200CIBJ | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Cast Iron - Swivel | £65.81 £54.84 | ||
| PSL150NYBJBR | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Nylon - Swivel Braked | £66.55 £55.46 | ||
| PSL200NYBJ | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Nylon - Swivel | £67.24 £56.03 | ||
| PFL150PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Polyurethane - Fixed | £68.59 £57.16 | ||
| PSL200CIBJBR | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Cast Iron - Swivel Braked | £72.53 £60.44 | ||
| PSL100PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Polyurethane - Swivel | £72.59 £60.49 | ||
| PSL200NYBJBR | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Nylon - Swivel Braked | £74.00 £61.67 | ||
| PSL125PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Polyurethane - Swivel | £75.95 £63.29 | ||
| PSL100PTBJBR | GPC Fabricated Heavy Duty Castors: size/model: 100mm - Polyurethane - Swivel Braked | £79.26 £66.05 | ||
| PSL150PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Polyurethane - Swivel | £80.64 £67.20 | ||
| PSL125PTBJBR | GPC Fabricated Heavy Duty Castors: size/model: 125mm - Polyurethane - Swivel Braked | £82.55 £68.79 | ||
| PFL200PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Polyurethane - Fixed | £84.10 £70.08 | ||
| PSL150PTBJBR | GPC Fabricated Heavy Duty Castors: size/model: 150mm - Polyurethane - Swivel Braked | £87.25 £72.71 | ||
| PSL200PTBJ | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Polyurethane - Swivel | £92.51 £77.09 | ||
| PSL200PTBJBR | GPC Fabricated Heavy Duty Castors: size/model: 200mm - Polyurethane - Swivel Braked | £99.17 £82.64 |

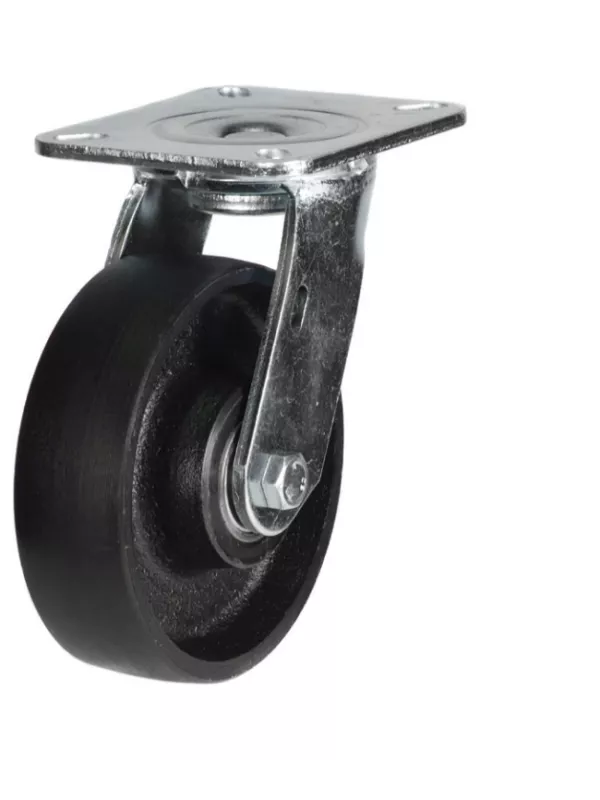

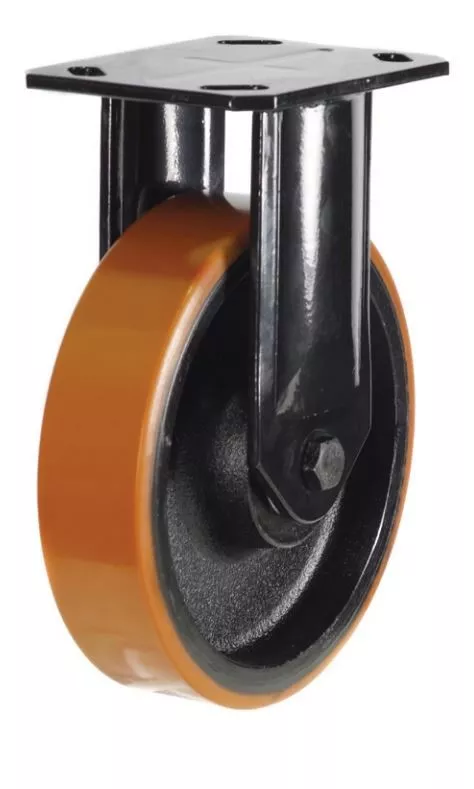

GPC Fabricated Heavy Duty Castors provide a reliable and versatile solution for demanding industrial applications. These castors feature a two-way directional lock on all swivel models (available at an additional cost), allowing enhanced stability and control when needed.
With a selection of wheel materials including polyurethane, nylon, and cast iron, these heavy-duty castors are designed to suit a variety of environments. Available in sizes ranging from 100mm to 200mm, they offer load capacities of up to 500kg, making them ideal for trolleys, carts, and heavy equipment. Each castor is fitted with a ball bearing system, ensuring smooth movement and long-lasting durability.
For the 100mm diameter wheels:
- Polyurethane wheels have a 50mm tread width and a 450kg load capacity, with an overall height of 140mm.
- Nylon wheels have a 40mm tread width and a 450kg load capacity, with an overall height of 140mm.
- Cast iron wheels have a 50mm tread width and a 450kg load capacity, with an overall height of 140mm.
For the 125mm diameter wheels:
- Polyurethane wheels have a 50mm tread width and a 500kg load capacity, with an overall height of 165mm.
- Nylon wheels have a 45mm tread width and a 500kg load capacity, with an overall height of 165mm.
- Cast iron wheels have a 40mm tread width and a 500kg load capacity, with an overall height of 165mm.
For the 150mm diameter wheels:
- Polyurethane wheels have a 50mm tread width and a 500kg load capacity, with an overall height of 190mm.
- Nylon wheels have a 45mm tread width and a 500kg load capacity, with an overall height of 190mm.
- Cast iron wheels have a 45mm tread width and a 500kg load capacity, with an overall height of 190mm.
For the 200mm diameter wheels:
- Polyurethane wheels have a 50mm tread width and a 500kg load capacity, with an overall height of 241mm.
- Nylon wheels have a 50mm tread width and a 500kg load capacity, with an overall height of 241mm.
- Cast iron wheels have a 45mm tread width and a 500kg load capacity, with an overall height of 241mm.

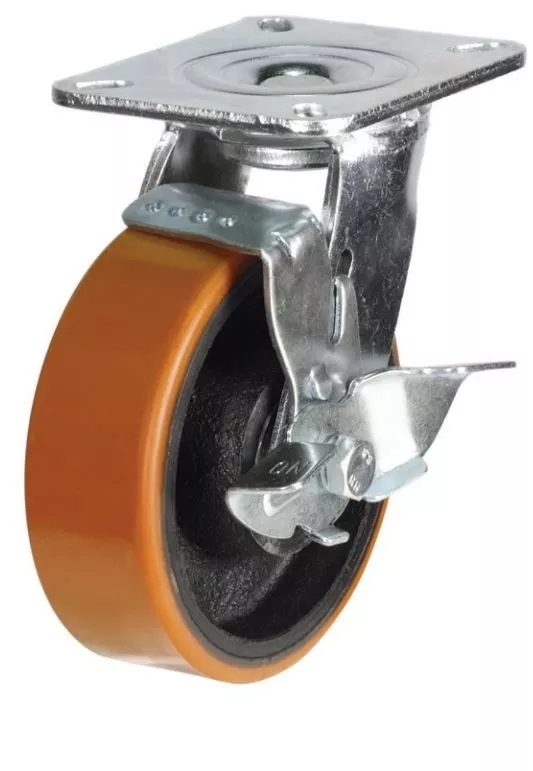

Available in swivel, fixed, and braked models, GPC Fabricated Heavy Duty Castors are designed to support the demands of industrial environments while providing controlled mobility. Choose the right wheel type and size for your specific application to ensure maximum efficiency and reliability.
