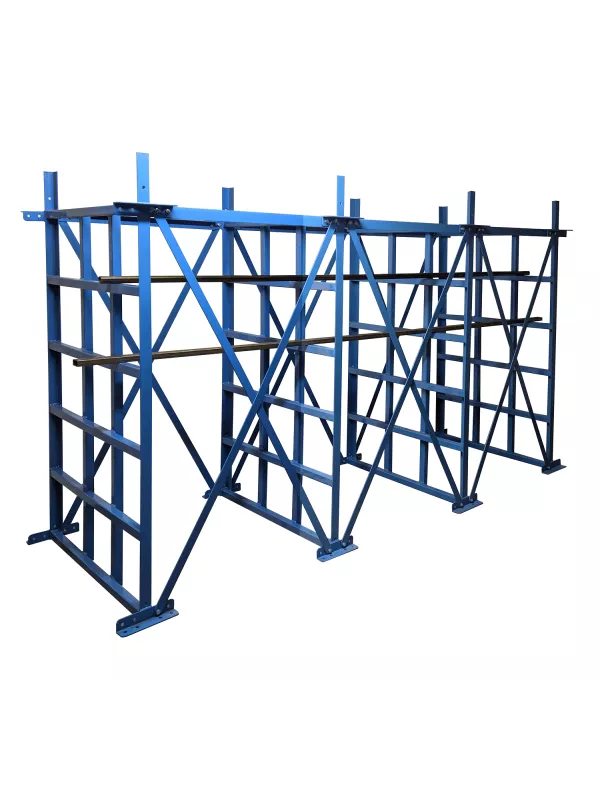

GPC Heavy Duty Bar CUBI-Rack (PBRP03Z)
GPC Heavy Duty Bar CUBI-Rack (PBRP03Z) is designed for high-capacity storage of flat bars, round bars, hollow sections, angle steel, and channel steel, making it an essential solution for workshops, warehouses, and industrial environments.
With a heavy-duty load capacity of 3000kg per column, this racking system provides strong and stable storage for long and heavy materials. The fully welded columns ensure structural integrity, while the braces and spacing angles are bolted together for added reinforcement.
For maximum safety and stability, the unit can be fixed to the floor, preventing movement and ensuring a secure storage solution for valuable materials.
Key Features & Specifications
- High-capacity storage for flat bars, round bars, hollow sections, angle steel, and channel steel
- Heavy-duty load capacity: 3000kg per column
- Fully welded columns for durability
- Braces and spacing angles are bolted together for reinforcement
- Easy to assemble for quick installation
- Can be fixed to the floor for added stability
- Suitable for storing piping, cylinders, and long items
Available Models:

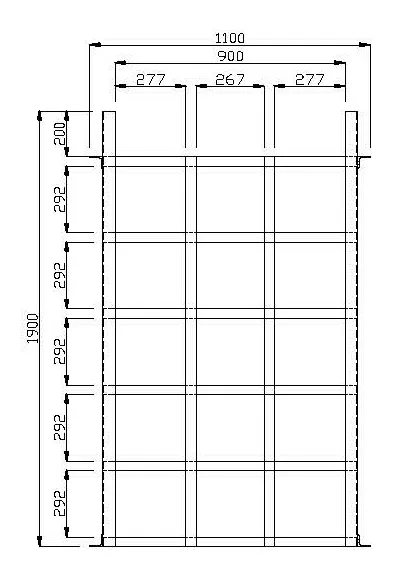

- 4 Columns with Spacers & Angles: 3250mm (L) x 1100mm (W) x 1900mm (H) | Weight: 237kg | Model: BRP03Z
- 5 Columns with Spacers & Angles: 4250mm (L) x 1100mm (W) x 1900mm (H) | Weight: 289kg | Model: BRP04Z
- 6 Columns with Spacers & Angles: 5250mm (L) x 1100mm (W) x 1900mm (H) | Weight: 342kg | Model: BRP05Z
- 7 Columns with Spacers & Angles: 6250mm (L) x 1100mm (W) x 1900mm (H) | Weight: 395kg | Model: BRP06Z
- 8 Columns with Spacers & Angles: 7250mm (L) x 1100mm (W) x 1900mm (H) | Weight: 447kg | Model: BRP07Z
Ideal for industrial and warehouse applications, the GPC Heavy Duty Bar CUBI-Rack offers a durable, high-capacity, and space-efficient solution for storing long and heavy materials safely.
