GPC Medium Duty Top Plate Castors (TPMDC)



Our GPC Medium Duty Top Plate Castors (TPMDC) offer robust construction with pressed steel double ball race swivel heads for smooth and efficient movement. With wheel sizes ranging from 100mm to 200mm, these castors are designed to support load capacities from 80kg up to 350kg, making them ideal for a variety of trucks, trolleys, and industrial equipment.
- Wheel sizes: Available in 100mm, 125mm, 150mm, 160mm, and 200mm
- Load capacities: Ranges from 80kg to 350kg depending on wheel type
- Materials: Nylon, polyurethane, blue rubber, and black rubber options
- Fixing plate dimensions: 105mm x 85mm (M8) or 135mm x 105mm (M10), depending on size
- Bolt hole centres: 80mm x 60mm or 105mm x 80mm for secure installation
- Bearings: Available in plain, roller, and ball bearings for different mobility requirements
Available Sizes and Load Capacities:

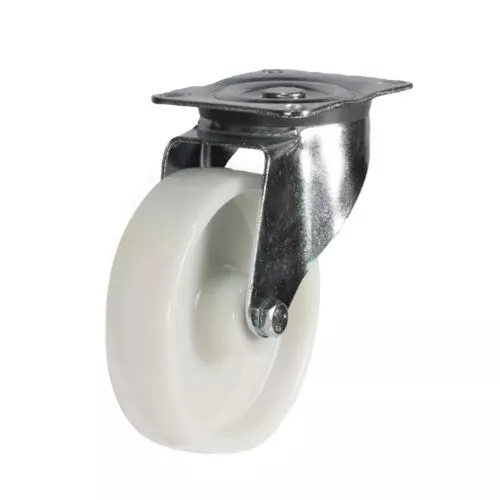

- 100mm Nylon Wheel – Tread width: 35mm, Load capacity: 200kg, Overall height: 128mm
- 100mm Polyurethane Wheel – Tread width: 38mm, Load capacity: 220kg, Overall height: 128mm
- 100mm Blue Rubber Wheel – Tread width: 34mm, Load capacity: 180kg, Overall height: 128mm
- 100mm Black Rubber Wheel – Tread width: 32mm, Load capacity: 80kg, Overall height: 128mm
- 125mm Nylon Wheel – Tread width: 35mm, Load capacity: 270kg, Overall height: 152mm
- 125mm Polyurethane Wheel – Tread width: 38mm, Load capacity: 270kg, Overall height: 152mm
- 125mm Blue Rubber Wheel – Tread width: 36mm, Load capacity: 250kg, Overall height: 152mm
- 125mm Black Rubber Wheel – Tread width: 37mm, Load capacity: 100kg, Overall height: 152mm
- 150mm Nylon Wheel – Tread width: 40mm, Load capacity: 350kg, Overall height: 185mm
- 150mm Polyurethane Wheel – Tread width: 50mm, Load capacity: 350kg, Overall height: 185mm
- 160mm Blue Rubber Wheel – Tread width: 45mm, Load capacity: 350kg, Overall height: 195mm
- 160mm Black Rubber Wheel – Tread width: 40mm, Load capacity: 175kg, Overall height: 195mm
- 200mm Nylon Wheel – Tread width: 50mm, Load capacity: 350kg, Overall height: 237mm
- 200mm Polyurethane Wheel – Tread width: 50mm, Load capacity: 350kg, Overall height: 237mm
- 200mm Blue Rubber Wheel – Tread width: 45mm, Load capacity: 350kg, Overall height: 237mm
- 200mm Black Rubber Wheel – Tread width: 50mm, Load capacity: 205kg, Overall height: 237mm

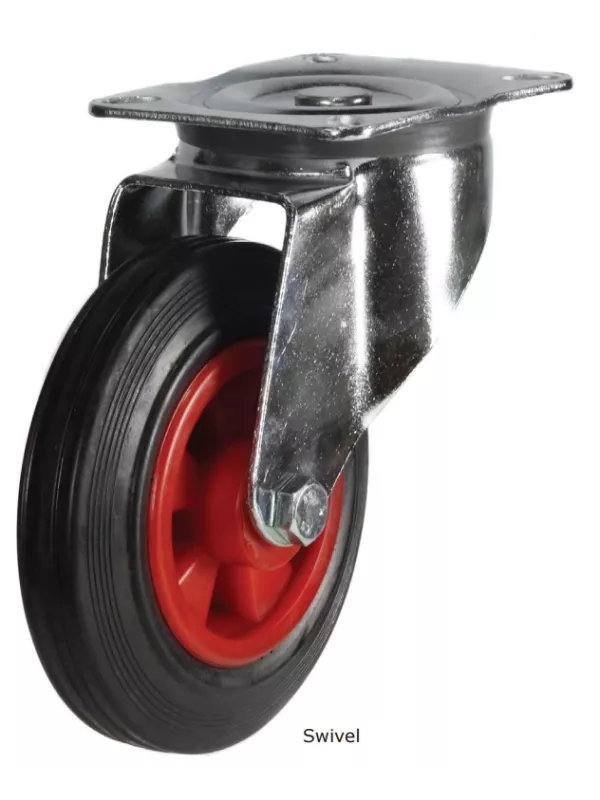

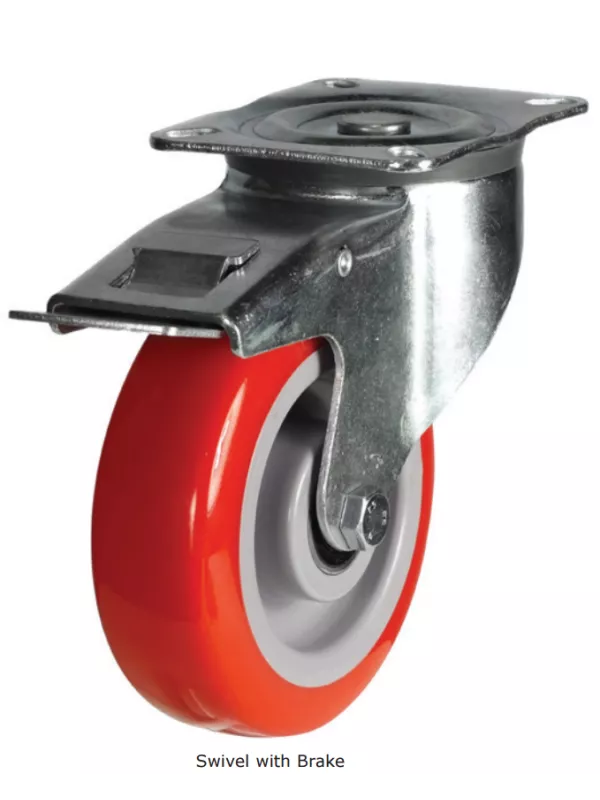

These medium-duty top plate castors provide strong, stable, and smooth mobility, making them ideal for industrial applications, warehouse trolleys, material handling, and general transport use. Whether you require swivel, fixed, or braked options, these castors ensure maximum efficiency and durability.
