GPC Steel Barrier System – Single & Double Height (SG)

The GPC Steel Barrier System offers single or double-height posts with four length options. Ideal for securing machinery and restricted areas with a durable, easy-install design.
GPC Steel Barrier System + SG + Delivery in 5-7 Working Days
GPC Industries: GPC Steel Barrier System
Steel Barrier Systems Options
From £112.44 (inc. VAT)RRP £202.26
SKUImageProduct1+

Prices include VAT

Quantity
SGR05Z1
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 508mm
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 508mm £112.44
SGP04Z1
GPC Steel Barrier System: Steel Barrier Systems Options: Post - Single - 483mm
GPC Steel Barrier System: Steel Barrier Systems Options: Post - Single - 483mm £175.08
SGR11Z1
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 1118mm
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 1118mm £186.82
SGR17Z1
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 1728mm
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 1728mm £257.76
SGP10Z1
GPC Steel Barrier System: Steel Barrier Systems Options: Post - Double - 1093mm
GPC Steel Barrier System: Steel Barrier Systems Options: Post - Double - 1093mm £263.11
SGR23Z1
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 2337mm
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 2337mm £328.44
SGR05Z1
GPC Steel Barrier System Steel Barrier Systems Options: Barrier Section - 508mm
1+ : £112.44
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 508mm
SGP04Z1
GPC Steel Barrier System Steel Barrier Systems Options: Post - Single - 483mm
1+ : £175.08
GPC Steel Barrier System: Steel Barrier Systems Options: Post - Single - 483mm
SGR11Z1
GPC Steel Barrier System Steel Barrier Systems Options: Barrier Section - 1118mm
1+ : £186.82
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 1118mm
SGR17Z1
GPC Steel Barrier System Steel Barrier Systems Options: Barrier Section - 1728mm
1+ : £257.76
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 1728mm
SGP10Z1
GPC Steel Barrier System Steel Barrier Systems Options: Post - Double - 1093mm
1+ : £263.11
GPC Steel Barrier System: Steel Barrier Systems Options: Post - Double - 1093mm
SGR23Z1
GPC Steel Barrier System Steel Barrier Systems Options: Barrier Section - 2337mm
1+ : £328.44
GPC Steel Barrier System: Steel Barrier Systems Options: Barrier Section - 2337mm
GPC Steel Barrier System + SG + Delivery in 5-7 Working Days
Steel Barrier System: Enhancing Safety and Control

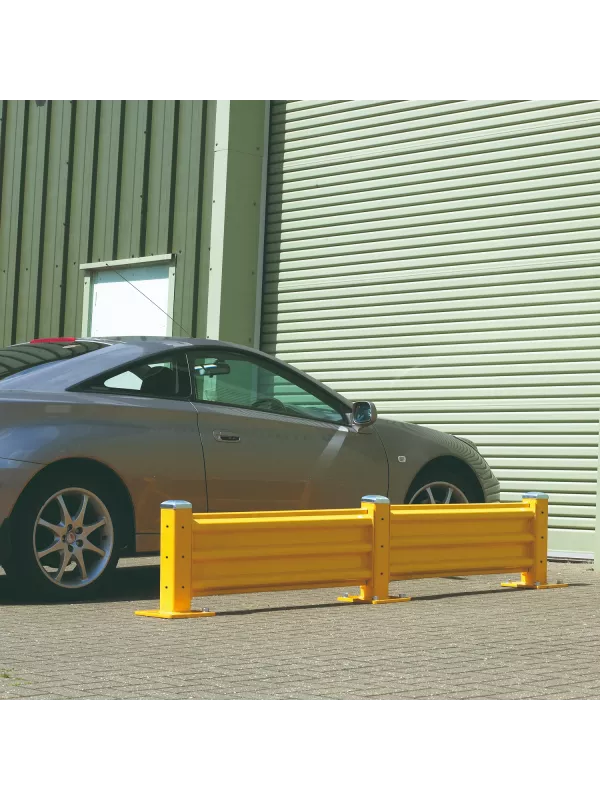

Upgrade your facility’s safety and access control with the GPC Steel Barrier System. Built for strength, durability, and versatility, this system is available in four different lengths and offers single or double-height posts to meet varying security requirements.

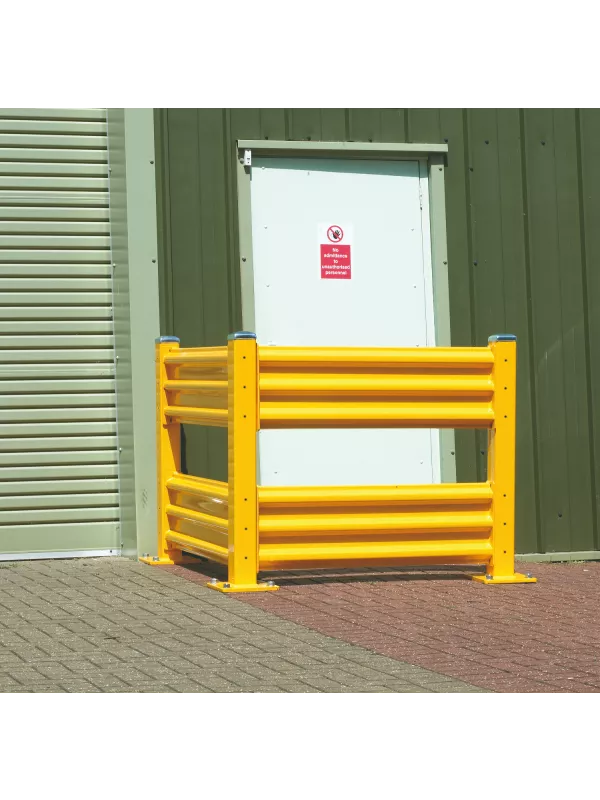

The double-height post option extends the barrier height to 1093mm, providing enhanced protection for machinery, restricted areas, and pedestrian walkways. Single-height posts at 483mm offer standard protection while maintaining visibility. Posts are suitable for both in-line and corner configurations, allowing flexible installation to suit different site layouts.

Please note: Posts and barriers are sold separately. If you require assistance in configuring the correct setup for your needs, contact us at 01302 300200 or use our live chat function.

Key Features:

  • Simple & Easy Installation: Mounted on square floor plates with pre-drilled fixing holes (fixings not supplied).

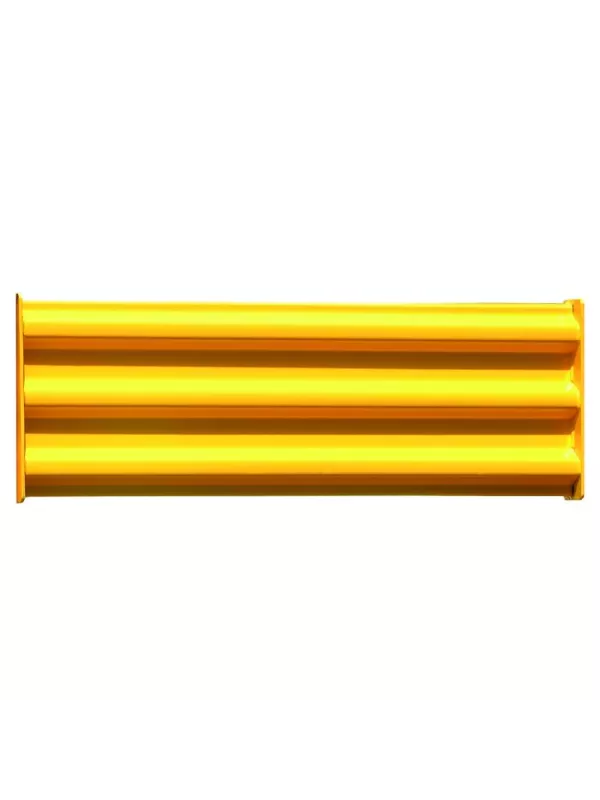

  • Triple Ridge Barrier Design: Provides extra strength and rigidity for impact resistance.
  • Rolled Top Edges: Helps eliminate sharp edges for a safer working environment.
  • Single & Double Height Posts: Choose between standard or high-level barriers to enhance security.

Barrier Length Options:

  • 508mm Length, 10kg – Model: SGR05Z
  • 1118mm Length, 18kg – Model: SGR11Z
  • 1728mm Length, 26kg – Model: SGR17Z
  • 2337mm Length, 34.5kg – Model: SGR23Z

Post Dimensions:

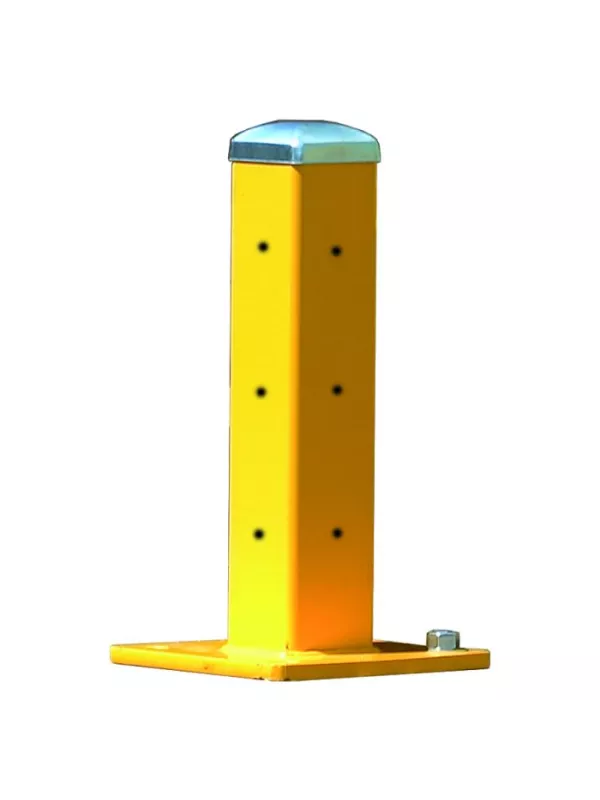

  • Single Height Post: 483mm (H) x 100mm (W) x 100mm (D), Mounting Plate: 254mm (W) x 254mm (D), Weight: 16.5kg – Model: SGP04Z

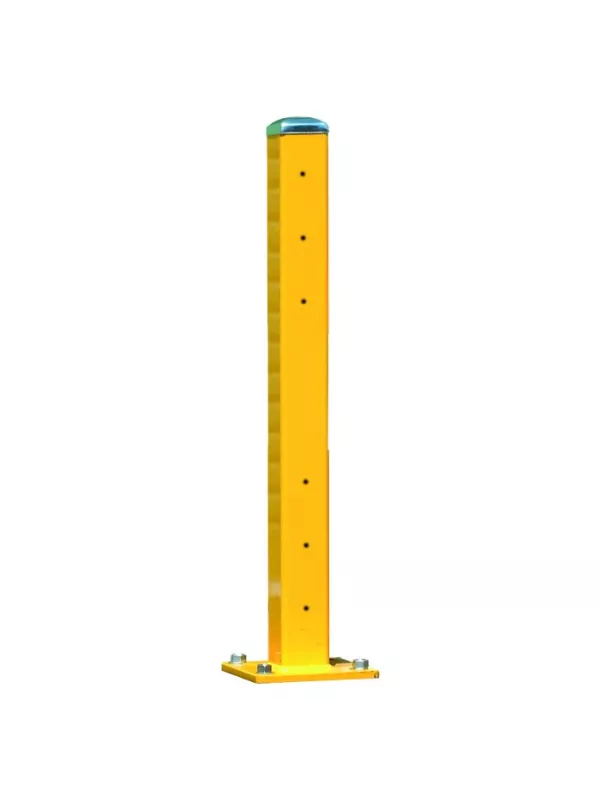

  • Double Height Post: 1093mm (H) x 101mm (W) x 100mm (D), Mounting Plate: 255mm (W) x 254mm (D), Weight: 27.5kg – Model: SGP10Z


Ideal for warehouses, factories, and industrial sites, the GPC Steel Barrier System provides a reliable, durable, and adaptable solution for securing hazardous areas and preventing unauthorised access.
