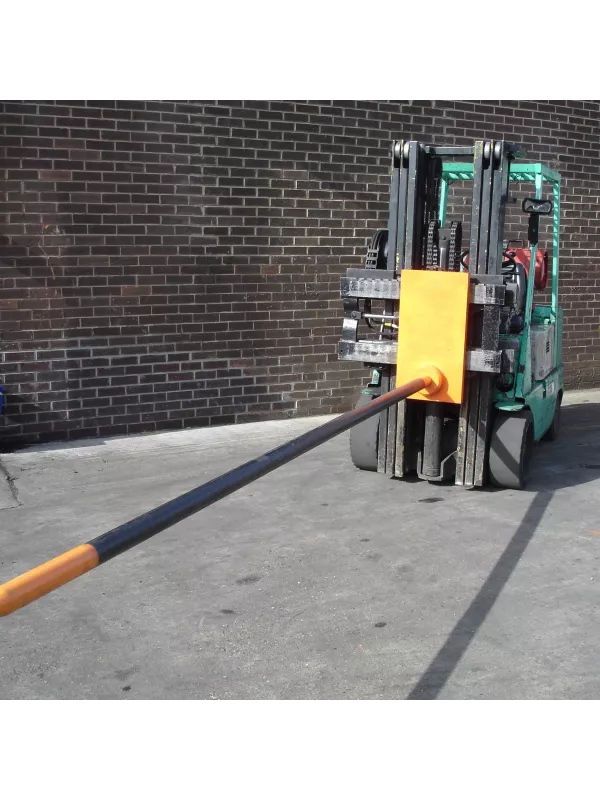

Invicta Carriage Mounted Poles – Durable and Versatile Heavy-Duty Lifting Solution (ICP-1)
The Invicta Carriage Mounted Poles are expertly engineered to provide a robust and efficient solution for lifting and repositioning coiled products such as carpets, paper rolls, linings, and fabric. With high tensile strength and smooth, tapered tips, these poles are designed to handle heavy-duty tasks while minimising product damage.
Ideal for warehouses, construction sites, and factories, these poles are mounted directly onto the forklift carriage, preserving the truck’s lifting capacity and ensuring a secure and balanced operation.
Specifications (By Model):
ICP-1
- ITA/FEM Class: 2A
- Boom Diameter: 70mm
- Length: 3000mm
- Capacity: 500kg
- Load Centre: 2000mm
- Weight: 138kg
- Centre of Gravity: 635mm
- Lower Load Centre (LLC): 90mm
ICP-2
- ITA/FEM Class: 2A
- Boom Diameter: 75mm
- Length: 3000mm
- Capacity: 600kg
- Load Centre: 2000mm
- Weight: 150kg
- Centre of Gravity: 650mm
- Lower Load Centre (LLC): 90mm
ICP-3
- ITA/FEM Class: 3A
- Boom Diameter: 75mm
- Length: 3000mm
- Capacity: 600kg
- Load Centre: 2000mm
- Weight: 170kg
- Centre of Gravity: 595mm
- Lower Load Centre (LLC): 110mm
ICP-4
- ITA/FEM Class: 2B
- Boom Diameter: 70mm
- Length: 3900mm
- Capacity: 500kg
- Load Centre: 2500mm
- Weight: TBA
- Centre of Gravity: TBA
- Lower Load Centre (LLC): TBA
ICP-5
- ITA/FEM Class: 2A
- Boom Diameter: 70mm
- Length: 2000mm
- Capacity: 500kg
- Load Centre: 1000mm
- Weight: 125kg
- Centre of Gravity: 520mm
- Lower Load Centre (LLC): 90mm
ICP-6
- ITA/FEM Class: 2A
- Boom Diameter: 70mm
- Length: 1600mm
- Capacity: 500kg
- Load Centre: 800mm
- Weight: 135kg
- Centre of Gravity: 400mm
- Lower Load Centre (LLC): 90mm
ICP-7
- ITA/FEM Class: 2A
- Boom Diameter: 70mm
- Length: 3700mm
- Capacity: 500kg
- Load Centre: 2500mm
- Weight: 210kg
- Centre of Gravity: 1045mm
- Lower Load Centre (LLC): 110mm
ICP-8
- ITA/FEM Class: 2A
- Boom Diameter: 75mm
- Length: 1600mm
- Capacity: 500kg
- Load Centre: 800mm
- Weight: TBA
- Centre of Gravity: TBA
- Lower Load Centre (LLC): TBA
ICP-9
- ITA/FEM Class: 2A
- Boom Diameter: 75mm
- Length: 3700mm
- Capacity: 600kg
- Load Centre: 2500mm
- Weight: 224kg
- Centre of Gravity: 1110mm
- Lower Load Centre (LLC): 110mm
Standard Features:
- High tensile machined pole with a tapered tip for precise placement in coiled products.
- Smooth surface finish to protect the lifted load.
- Quick-release bottom hangers for effortless attachment.
- Painted bright orange for enhanced visibility and safety.
Operation Instructions:
- Remove the existing forks from the forklift carriage.
- Position the Carriage Mounted Pole parallel to the floor.
- Remove the quick-release bottom hangers by retracting the retaining pin and safety clip.
- Align the forklift carriage with the back plate of the pole.
- Drive the forklift towards the pole with the mast tilted forward, hooking the top carriage rail under the top hangers.
- Ensure the location peg on the back plate aligns with the central castellation of the forklift carriage.
- Raise the forklift carriage, tilting the mast back to the vertical position until the attachment is clear of the ground.
- Reposition the quick-release bottom hangers, ensuring the safety clip is securely inserted.
- The attachment is now ready for use.
Maintenance Guidelines:
- Inspect weekly, focusing on:
- Weld points for structural integrity.
- Wear and distortion in quick-release hangers.
- Alignment and condition of the pole.
- Any damaged or worn components.
- Treat surface rusting with inhibitors, primers, and paint as necessary.
- Report and rectify any damage before reusing the attachment.
- Re-certify every six months as per HSE guidelines.
Health & Safety Notes:
- Ensure operators are trained in the attachment’s operation and maintenance.
- Verify the forklift and attachment are rated for the intended load.
- Ensure the pole is fully inserted into the load before lifting.
- Do not tip-load or shock-load the attachment.
- Always adhere to the specified safe working load.
- Use the quick-release hangers correctly for secure attachment.
