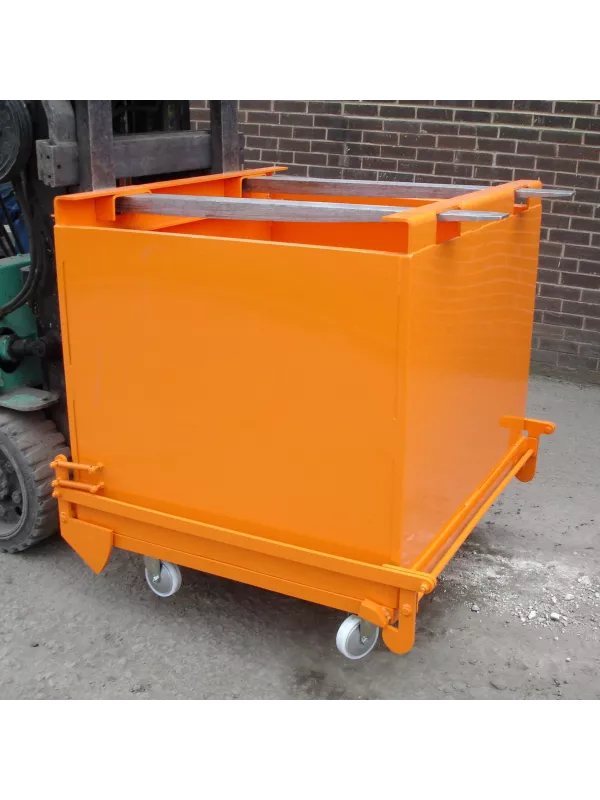

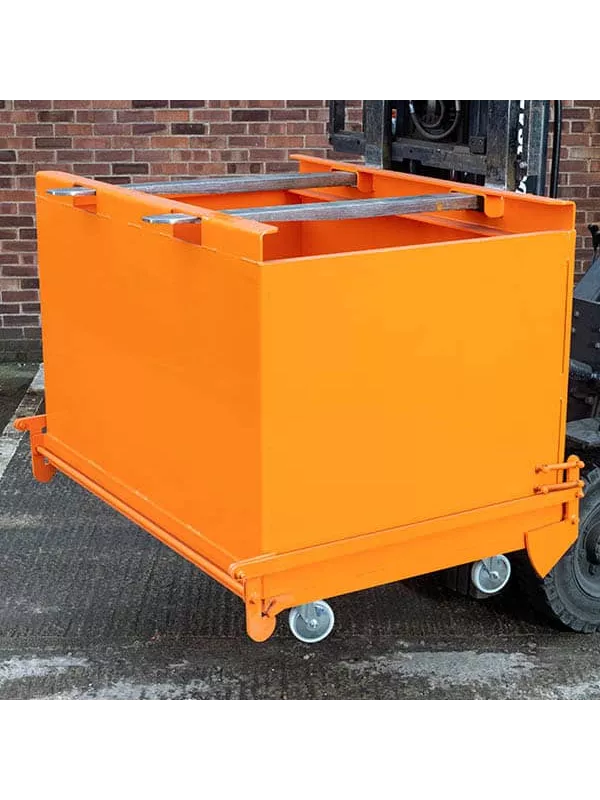

Invicta Bottom Empty Skip – Efficient and Safe Waste Disposal (IBE-1)

The Invicta Bottom Empty Skip simplifies waste disposal with its unique automatic releasing and locking mechanism, enabling safe and efficient operation. Constructed from durable steel, this heavy-duty skip is ideal for light to medium-weight waste, making it a reliable solution for construction sites, warehouses, factories, and recycling centres.

With a reinforced design and practical features like internally strengthened sides and lap-welded corners, the skip ensures long-lasting durability. The automatic base release mechanism allows easy emptying into high-sided yard skips, eliminating the need for drivers to leave their seats, promoting a safer working environment.

Specifications (By Model):

IBE-1

• Capacity: 550kg
• Weight: 212kg
• Centre of Gravity: 385mm
• Length: 850mm
• Width: 1050mm
• Height: 900mm (Add 270mm for overall height)
• Nominal Capacity: 0.8m³

IBE-2

• Capacity: 750kg
• Weight: 255kg
• Centre of Gravity: 500mm
• Length: 1050mm
• Width: 1200mm
• Height: 900mm (Add 270mm for overall height)
• Nominal Capacity: 1.2m³

IBE-3

• Capacity: 950kg
• Weight: 287kg
• Centre of Gravity: 500mm
• Length: 1050mm
• Width: 1500mm
• Height: 900mm (Add 270mm for overall height)
• Nominal Capacity: 1.45m³

Standard Features:

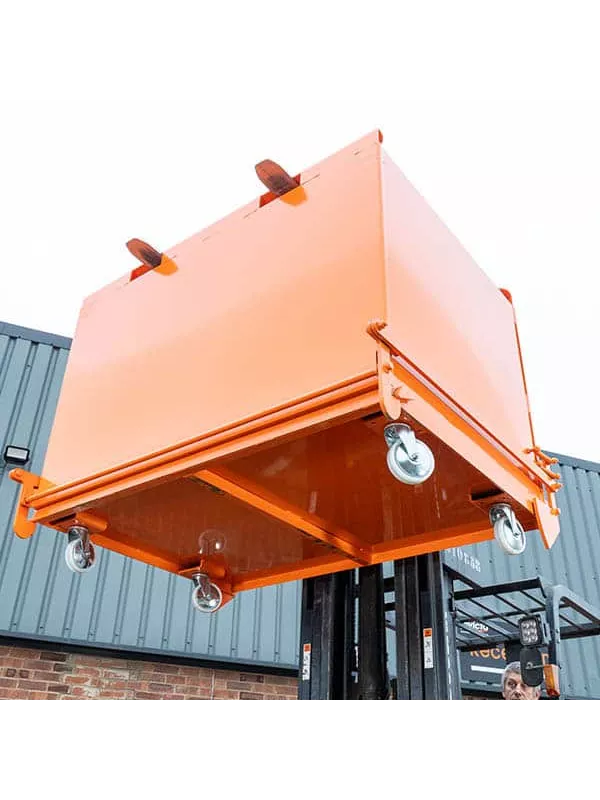

• 125mm diameter nylon castors fitted as standard.
• Internally reinforced sides and lap-welded corners for durability.
• Unique automatic releasing and locking mechanism for safe operation.
• Maximum fork section: 150 x 50mm at 683mm centres.
• Zinc-plated heel pins for secure truck attachment.
• Painted bright orange for enhanced visibility and safety.

Operation Instructions:

1. Position the forklift forks to the correct distance to align with the skip's fork pockets.
2. Remove fork pocket heel pins from the skip.
3. Drive the forklift forks into the fork pockets.
4. Insert heel pins behind the fork heels and secure them with the safety lynch pins.
5. Move the skip to the yard skip and align the actuator plates over the yard skip’s side.
6. Lower the actuator plates onto the yard skip side to activate the release hooks.

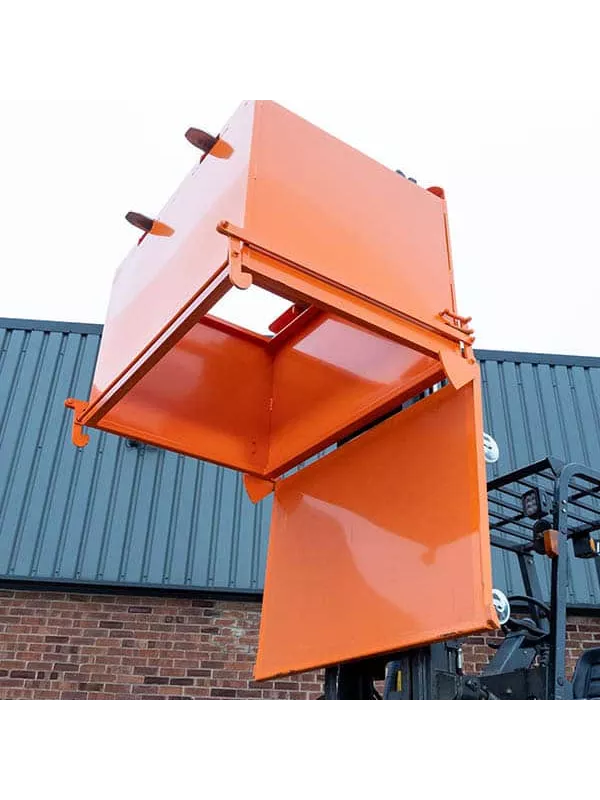

7. Keeping the mast vertical, lift the forklift carriage so the drop bottom door clears the yard skip and reverse to disengage.
8. Lower the skip to the ground to re-latch the drop bottom door. Some forward tilt may be required depending on site conditions.

Maintenance:

• Inspect weekly, focusing on:
  • Weld points.
  • Wear and distortion of fork pockets and heel pin attachments.
  • Lock latches and spring condition.
  • General structural integrity.
• Ensure all bolts are tight.
• Grease pivot bars, latches, and locks regularly.
• Oil the springs to maintain smooth operation.
• Treat surface rust with proprietary inhibitors, primers, and paint.
• Re-certify every six months as per HSE requirements.

Optional Features:

• Custom colour finish for waste separation.
• Hinged lid for enhanced containment.

Health & Safety Notes:

• Ensure operators are trained in the skip’s operation and maintenance.
• Confirm the forklift and attachment can handle the intended load.
• Keep personnel at a safe distance during operation.
• Verify that heel pins are correctly inserted and retained before each use.
• Do not shock load the skip or drive into fork pockets without removing heel pins.
• If failure occurs, do not attempt to repair while off the ground—return the skip to the floor for inspection.
• Always ensure release hooks are engaged before each operation.

Approximate Lead Time:

2-3 days. For out-of-stock items, our team will contact you to discuss delivery times.

The Invicta Bottom Empty Skip is a robust and practical solution for your waste disposal needs. Its automatic mechanism and durable design make it an indispensable tool for efficient material handling.
