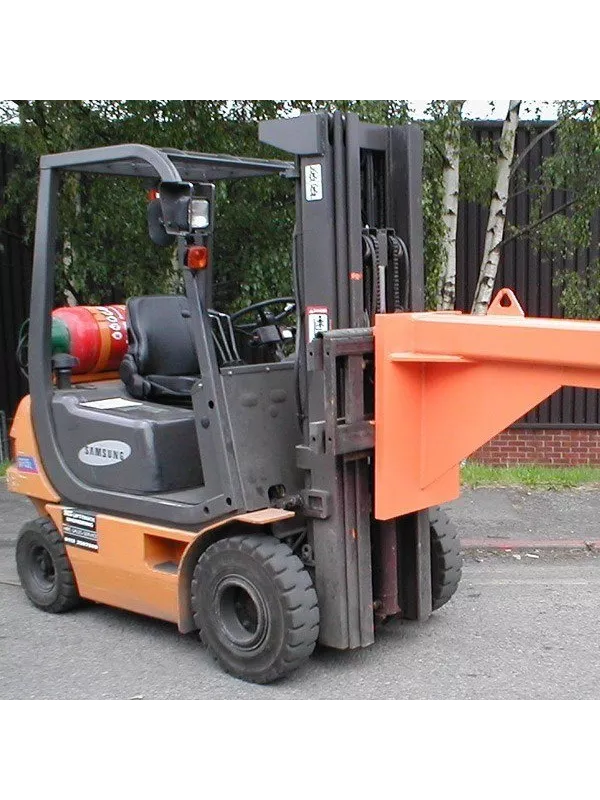

Invicta Carriage Mounted Jib – Heavy-Duty Lifting Solution for Forklifts (ICJ-1.0)
The Invicta Carriage Mounted Jib is the ideal solution for demanding lifting operations. This attachment provides a versatile and safe alternative to overhead cranes or static floor-mounted jibs, with the advantage of reduced load centre loss and a lower centre of gravity compared to fork-mounted options.
Whether on construction sites, in warehouses, or factories, the Invicta Carriage Mounted Jib ensures efficient and safe handling of heavy and awkward loads, with a capacity ranging up to 6000kg.
Specifications (By Model):
ICJ-1.0
- Capacity: 1000kg at 1000mm load centre
- Weight: 235kg
- Centre of Gravity: 410mm
- Lower Load Centre (LLC): 30mm
- ITA/FEM Class: 2
ICJ-2.0
- Capacity: 2000kg at 1000mm load centre
- Weight: 235kg
- Centre of Gravity: 410mm
- Lower Load Centre (LLC): 30mm
- ITA/FEM Class: 2
ICJ-3.0
- Capacity: 3000kg at 1000mm load centre
- Weight: 255kg
- Centre of Gravity: 460mm
- Lower Load Centre (LLC): 40mm
- ITA/FEM Class: 3
ICJ-4.0
- Capacity: 4000kg at 1000mm load centre
- Weight: 255kg
- Centre of Gravity: 460mm
- Lower Load Centre (LLC): 40mm
- ITA/FEM Class: 3
ICJ-5.0
- Capacity: 5000kg at 1000mm load centre
- Weight: 280kg
- Centre of Gravity: 560mm
- Lower Load Centre (LLC): 50mm
- ITA/FEM Class: 4
ICJ-6.0
- Capacity: 6000kg at 1000mm load centre
- Weight: 280kg
- Centre of Gravity: 560mm
- Lower Load Centre (LLC): 50mm
- ITA/FEM Class: 4
Standard Features:
- Multi-hook positioning from 1000–1750mm load centres.
- Supplied with a swivel hook and bow shackle.
- Quick-release bottom hangers for secure attachment.
- Centre-of-gravity lifting eye for easy movement and mounting.
- Painted bright orange for enhanced visibility and safety.
Operation Instructions:
- Remove the existing forks from the forklift carriage.
- Align the jib so that the load beam is parallel to the ground.
- Remove the quick-release bottom hangers by retracting the retaining pin and safety clip.
- Position the forklift behind the jib and centralise the forklift carriage with the jib back plate.
- Drive the forklift forward with the mast tilted slightly forward, hooking the top carriage rail under the top hangers.
- Ensure the location peg aligns with the central castellation of the forklift carriage.
- Tilt the mast back to the vertical position and raise the attachment until it clears the floor.
- Secure the quick-release bottom hangers, ensuring the safety clip is properly inserted.
- Attach the swivel hook and shackle to the desired lifting point, tightening the shackle securely.
Maintenance Guidelines:
- Inspect weekly, focusing on:
- Weld points for structural integrity.
- Wear and distortion of quick-release bottom hangers.
- Condition of the swivel hook, safety latch, and shackle.
- Treat surface rust with proprietary inhibitors, primers, and paint.
- Report and rectify any damage before reusing the jib.
- Re-certify every six months as per HSE regulations.
Health & Safety Notes:
- Ensure operators are trained in the attachment’s operation and maintenance.
- Verify the forklift and attachment are rated for the intended load.
- Tighten shackle pins securely before each use.
- Attach the jib to the forklift carriage only after removing the quick-release bottom hangers.
- Ensure vertical lifts only; avoid angular lifts.
- Do not exceed the specified safe working load.
