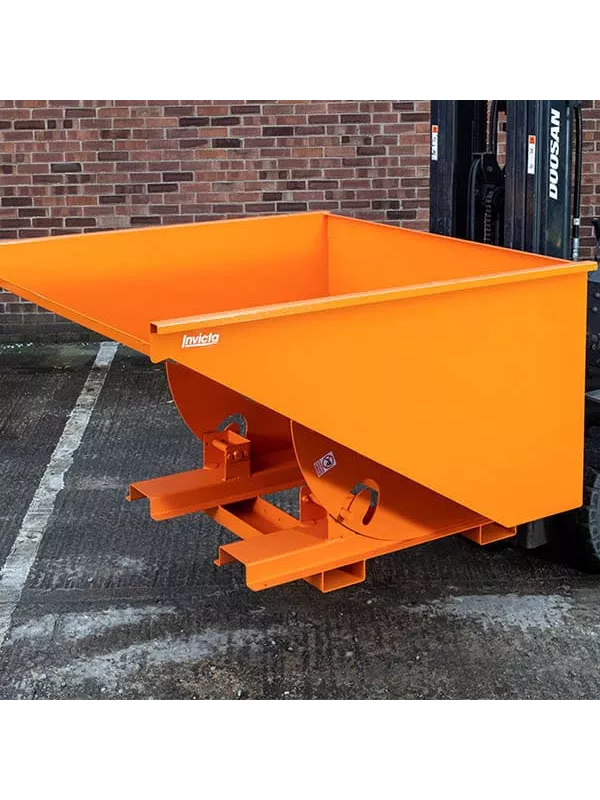

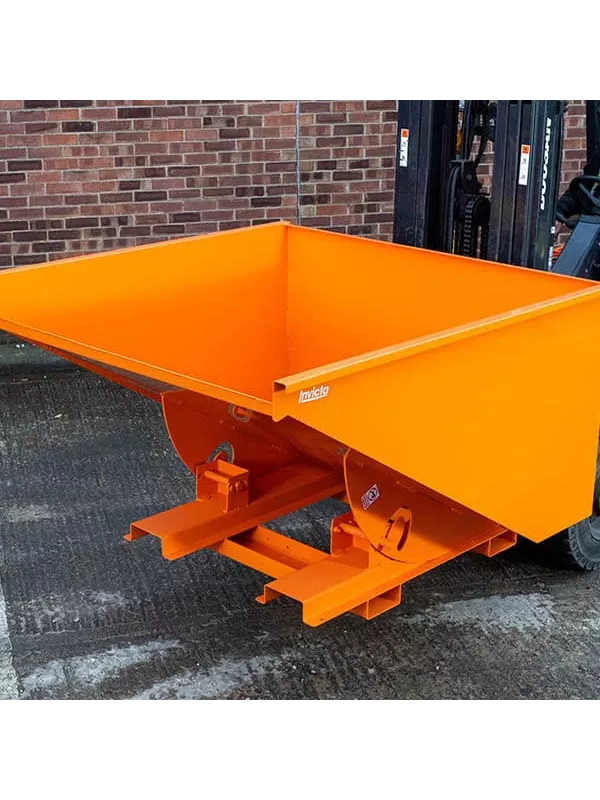

Invicta Combi Tipping Skip for Efficient Material Handling (ICUS-0)
The Invicta Combi Tipping Skip (ICUS-0) is designed to simplify the collection, movement, and disposal of materials in confined spaces. Its unique 4-way entry base ensures ease of access, while the low loading height facilitates efficient operations. Supplied as standard with manual operation, the skip can be upgraded with an optional conversion kit for automatic tipping, allowing forklift or telehandler operators to empty it without leaving their seats.
The durable design, including reinforced leading edges and a fully seam-welded body, ensures long-lasting performance even in demanding environments.
Specifications (By Model):
ICUS-0
- Nominal Capacity: 0.5m³
- Capacity: 700kg
- Body Length: 1220mm (+230mm for overall length)
- Body Width: 1030mm
- Body Height: 690mm (+205mm for overall height)
- Weight: 166kg
- Centre of Gravity (C of G): 760mm
ICUS-1
- Nominal Capacity: 0.9m³
- Capacity: 900kg
- Body Length: 1600mm (+230mm for overall length)
- Body Width: 1060mm
- Body Height: 830mm (+205mm for overall height)
- Weight: 222kg
- Centre of Gravity (C of G): 785mm
ICUS-2
- Nominal Capacity: 1.2m³
- Capacity: 1200kg
- Body Length: 1600mm (+230mm for overall length)
- Body Width: 1300mm
- Body Height: 830mm (+205mm for overall height)
- Weight: 229kg
- Centre of Gravity (C of G): 725mm
ICUS-3
- Nominal Capacity: 1.5m³
- Capacity: 1600kg
- Body Length: 1600mm (+230mm for overall length)
- Body Width: 1560mm
- Body Height: 830mm (+205mm for overall height)
- Weight: 251kg
- Centre of Gravity (C of G): 685mm
ICUS-4
- Nominal Capacity: 1.8m³
- Capacity: 2200kg
- Body Length: 1800mm (+230mm for overall length)
- Body Width: 1560mm
- Body Height: 955mm (+205mm for overall height)
- Weight: 277kg
- Centre of Gravity (C of G): 650mm
Standard Features:
- Low loading height for ease of use.
- Reinforced leading edge and body sides for durability.
- Unique 4-way fork pocket entry for accessibility.
- Secondary locking mechanism to prevent accidental discharge.
- Fully seam-welded body for fluid retention.
- Manual handle override for quick operation.
- Maximum fork section: 150 x 50mm at 675mm centres.
- Zinc-plated heel pins for secure attachment to forklifts.
- Painted bright orange for enhanced safety visibility.
Optional Features:
- Conversion kit for automatic operation.
- 125mm nylon castors for added mobility.
- Customised colour finishes for waste separation or departmental use.
Operation Instructions:

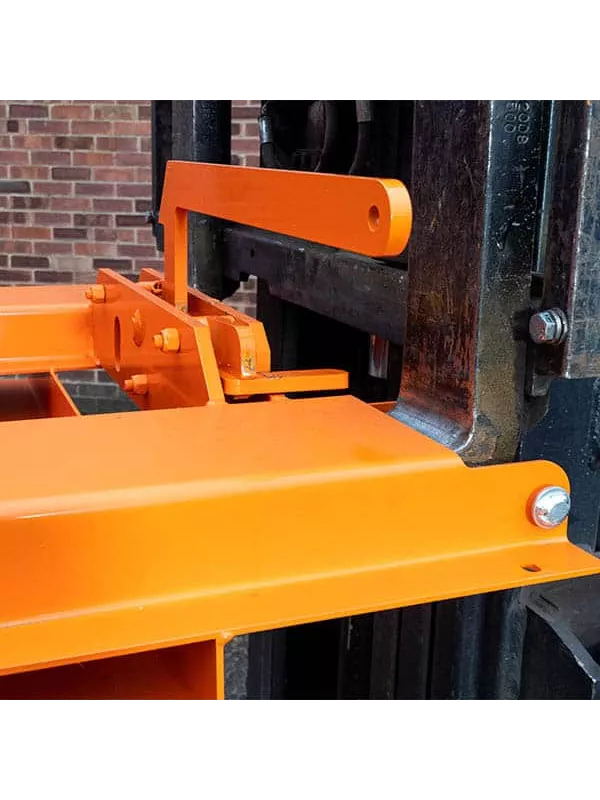

Manual Release Handle Operation:
- Position forks correctly and insert them into fork pockets.
- Remove fork pocket heel pins.
- Drive forks fully into the fork pockets.

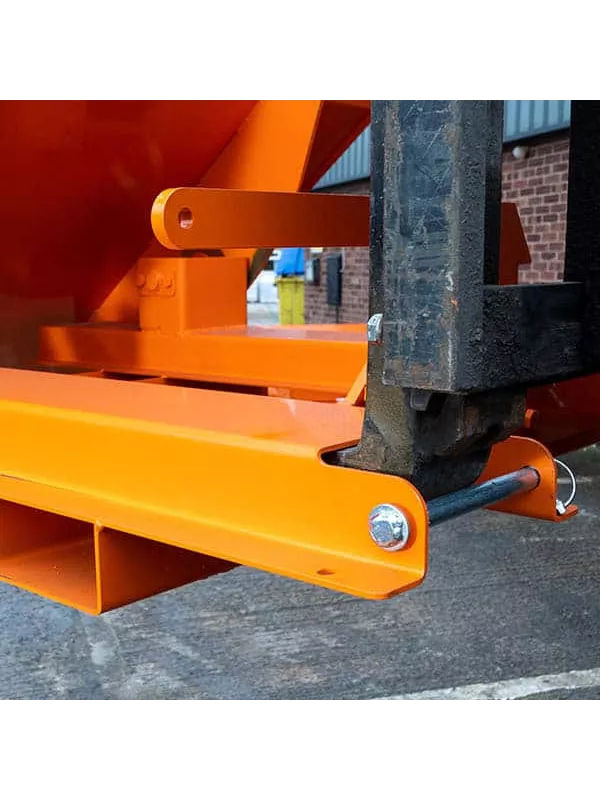

- Insert heel pins and secure with safety lynch pins.
- Transport the skip to the desired tipping area.
- Release the secondary lock mechanism at the rear.

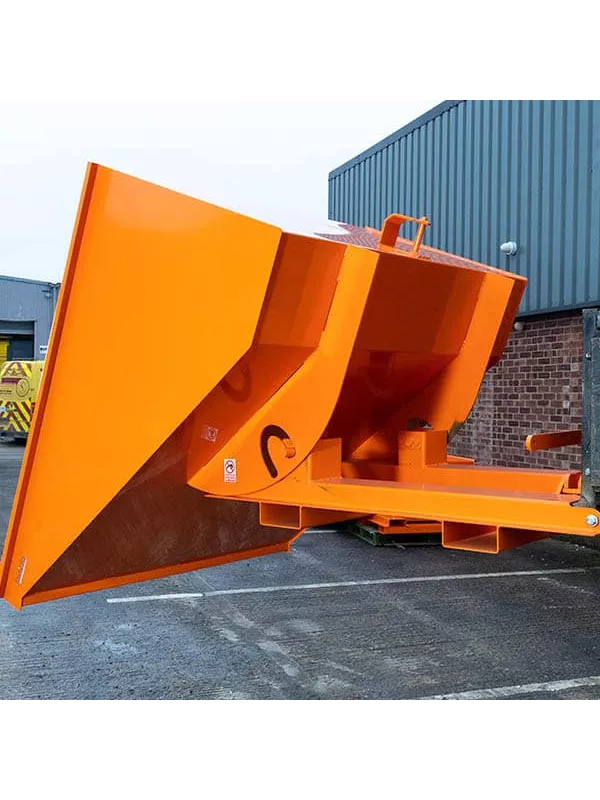

- Pull the release handle to empty the contents.
- Re-latch the skip onto the hook and secure the safety lock mechanism.
Auto-Release Operation:
- Follow steps 1-4 above.
- Position the skip’s actuator plate over the side of the yard skip.
- Lower the skip until the hook release mechanism disengages.
- Lift the skip to clear the yard, return it to the ground, and re-secure the safety mechanism.
Optional Hinged Lid Installation (if applicable):
- Align the lid to the skip body and mark hole positions.
- Drill holes and secure the lid using the provided bolts.
- Ensure the lid is properly closed during operation to avoid damage.
Maintenance Guidelines:
- Weekly inspection required for weld points, fork pockets, and heel pin attachments.
- Grease pivot bars, latches, and locks regularly.
- Treat surface rust with inhibitors, primers, and paint as needed.
- Report and rectify any damage before reuse.
- Certified for six months; re-testing is required as per HSE standards.
Health & Safety Notes:
- Operators must be fully trained and aware of the skip’s operation and maintenance requirements.
- Ensure the forklift and skip can handle the intended load.
- Engage the secondary lock mechanism before tipping operations.
- Avoid using the skip in side-entry pockets during tipping.
- Do not attempt repairs or re-use without proper inspection.
