Invicta Battery Lifting Beam – Safe and Efficient Forklift Battery Handling (ILB-1)

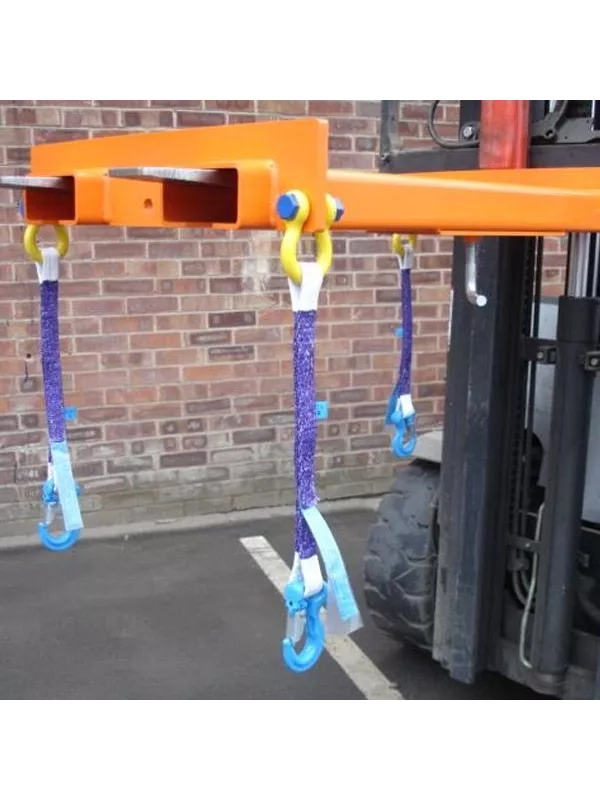

The Invicta Fork Mounted Battery Lifting Beam is specifically designed for the safe and efficient removal of battery boxes from forklifts. Featuring six standard lifting points and supplied with four single-drop chains, this attachment ensures a secure and stable operation. It comes as a fork-mounted unit, with an option for a lifting eye to suit overhead crane requirements. Its bright orange finish enhances visibility and safety during use.
Specifications:
- Model ILB-1:
- Capacity: 1000kg
- Weight: 45kg
- Centre of Gravity: 450mm
- Lifting Points Centres: 900 x 570mm (outer)
- Model ILB-2:
- Capacity: 2000kg
- Weight: 45kg
- Centre of Gravity: 450mm
- Lifting Points Centres: 900 x 570mm (outer)
Standard Features:
- Supplied with four single-drop chains with hooks.
- Six lifting points provided as standard for versatile applications.
- Zinc-plated thumb screws for secure attachment to forklift forks.
- Maximum fork section: 125 x 50 mm at 340 mm centres.
- Painted bright orange for safety and visibility.
Operation Instructions:
- Position the forklift forks to the correct width to align with the fork pockets.
- Fully insert the forks into the fork pockets and tighten the thumb screws securely.
- Attach the lifting chains to the designated pick-up points on the battery box.
- Remove any unused chains to prevent battery shorting.
- The attachment is now ready for use.
Maintenance Guidelines:
- Inspect weekly for:
- Weld points.
- Wear and distortion of fork pockets and thumb screws.
- Damaged or worn components.
- General condition of shackles, chains, hooks, and safety latches.
- Address any damage or failures immediately before reuse.
- Treat general surface rust with inhibitors, primers, and paint regularly.
- Ensure all bolts are tightened, and moving parts are lubricated.
- Certified for six months from manufacture; re-testing is required as per HSE guidelines.
Health & Safety Notes:
- Ensure operators are fully trained in using and maintaining the attachment.
- Verify that the forklift and attachment are suitable for the intended load.
- Confirm that all shackle pins and thumb screws are tightened securely.
- Remove unwanted chains before use to avoid potential electrical shorting.
- Always perform vertical lifts; avoid diagonal or shock loading.
- Maintain the mast in a vertical position during operation.
- Adhere to the safe working load limits for each lifting point.
