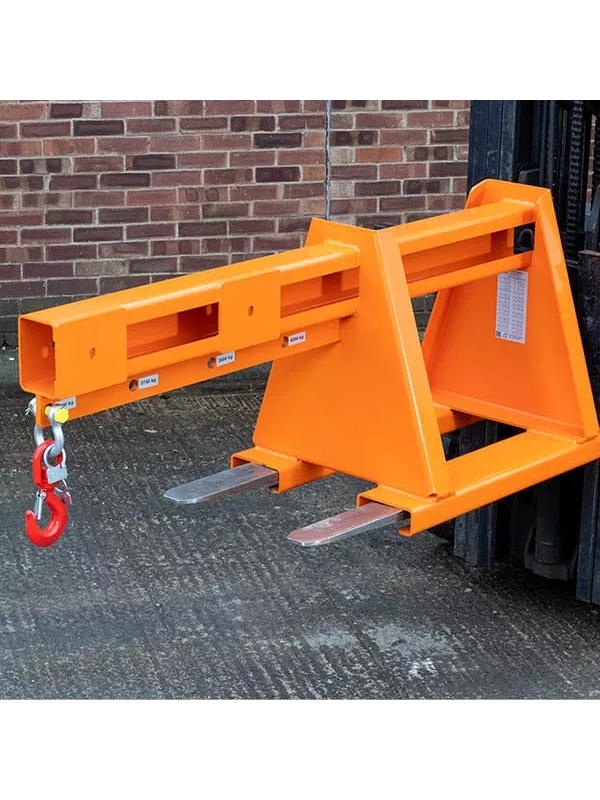

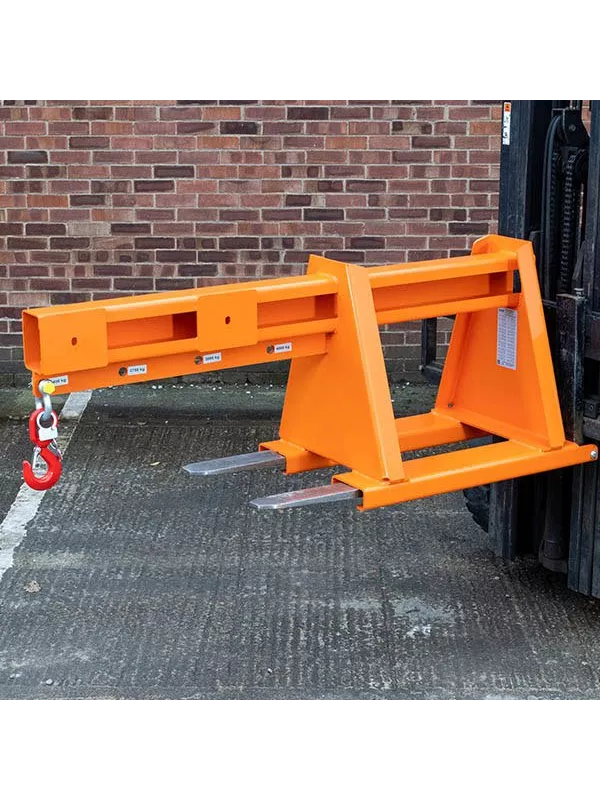

Invicta Fork Mounted Jib – Open Design for Versatile Lifting Applications (IFJ-1.0-OP)
The Invicta Fork Mounted Jib (Open) is a versatile forklift attachment designed to handle long and awkward loads from challenging locations. With multi-hook positioning and multiple models offering varying load capacities, this jib ensures secure and precise lifting. Supplied with a swivel hook and bow shackle, its durable construction and bright orange finish enhance both safety and visibility in industrial environments.
Specifications (By Model):
IFJ-1.0-OP
- Capacity at 1000mm Load Centre: 1000kg
- Weight: 141kg
- Centre of Gravity (C of G): 670mm
IFJ-1.5-OP
- Capacity at 1000mm Load Centre: 1500kg
- Weight: 146kg
- Centre of Gravity (C of G): 670mm
IFJ-2.0-OP
- Capacity at 1000mm Load Centre: 2000kg
- Weight: 152kg
- Centre of Gravity (C of G): 670mm
IFJ-3.0-OP
- Capacity at 1000mm Load Centre: 3000kg
- Weight: 159kg
- Centre of Gravity (C of G): 670mm
IFJ-4.0-OP
- Capacity at 1000mm Load Centre: 4000kg
- Weight: 171kg
- Centre of Gravity (C of G): 670mm
IFJ-5.0-OP
- Capacity at 1000mm Load Centre: 5000kg
- Weight: 183kg
- Centre of Gravity (C of G): 670mm
Standard Features:
- Multi-Hook Positioning: Adjustable between 1000-1750mm load centres for flexible lifting.
- Durable Swivel Hook and Bow Shackle: Ensures secure handling of loads.
- Zinc-Plated Heel Pins: Provides safe attachment to forklift trucks.
- Bright Orange Finish: Increases visibility and safety during operation.
- Maximum Fork Section: 150 x 50mm at 435mm centres.
Operation Instructions:
- Adjust the forklift forks to the correct distance to align with the jib’s fork pockets.
- Drive the forks fully into the pockets.
- Insert the heel pins behind the fork heel and secure them with the safety lynch pin.
- Position the swivel hook and shackle to the required lifting point, ensuring the shackle is tightened securely.
- The jib attachment is now ready for use.
Maintenance Guidelines:
- Inspect weekly for:
- Weld point integrity.
- Wear or distortion of fork pockets and heel pin attachments.
- General condition of swivel hook, safety latch, and shackle.
- Treat any surface rust with proprietary inhibitors, primers, and paint.
- Report and rectify any damage or failure immediately.
- Certified for six months from the date of manufacture; re-testing or inspection is required thereafter as per HSE guidelines.
Health & Safety Notes:
- Ensure all operators are trained in the attachment’s operation and maintenance.
- Verify that the forklift and jib can handle the intended load and contents.
- Always ensure the heel pins are securely fastened before operation.
- Only perform vertical lifts—avoid angular or shock loading.
- Do not exceed the safe working load at any lifting point.
Contact us today for more information or to request a quote.
