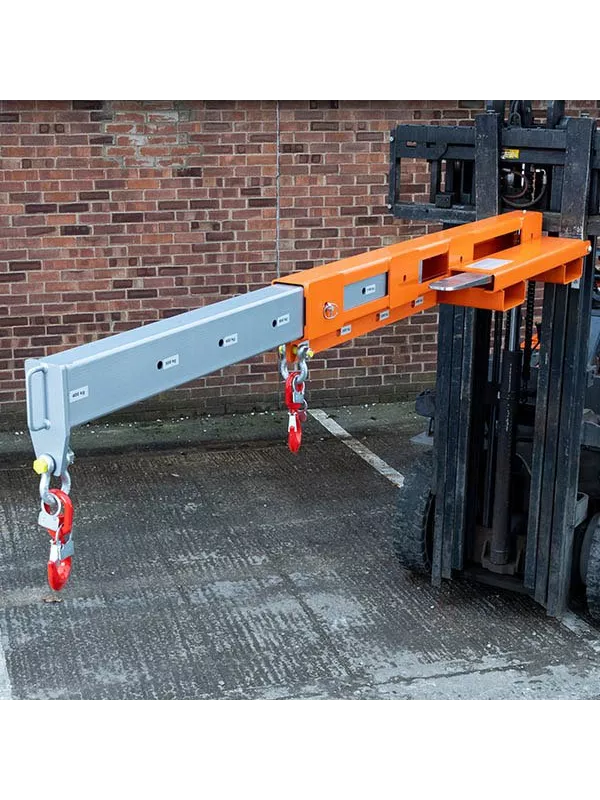

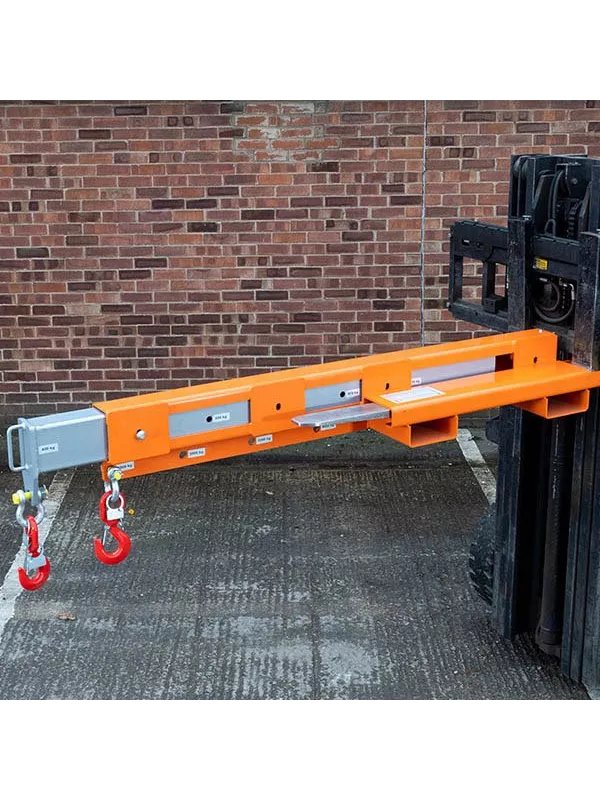

Invicta Low Profile Extending Jib – Versatile Forklift Lifting Attachment (ILEP-1.0)
The Invicta Low Profile Extending Jib is designed for efficient handling of long or awkward loads, even in hard-to-access locations. With up to 10 lifting positions, this attachment extends the versatility of your forklift. Supplied with two swivel hooks and bow shackles, the jib ensures a secure cradle for your loads. The extending feature makes it ideal for tasks requiring precise positioning and variable reach.
Specifications:
- Model ILEP-1.0-OP:
- Capacity: 1000kg at 500mm load centre
- Weight: 95kg
- Centre of Gravity: 750-1010mm
- Model ILEP-1.5-OP:
- Capacity: 1500kg at 500mm load centre
- Weight: 100kg
- Centre of Gravity: 750-1010mm
- Model ILEP-2.0-OP:
- Capacity: 2000kg at 500mm load centre
- Weight: 109kg
- Centre of Gravity: 750-1010mm
- Model ILEP-3.0-OP:
- Capacity: 3000kg at 500mm load centre
- Weight: 127kg
- Centre of Gravity: 750-1010mm
- Model ILEP-4.0-OP:
- Capacity: 4000kg at 500mm load centre
- Weight: 138kg
- Centre of Gravity: 750-1010mm
Standard Features:
- Multi-hook positioning from 500mm to 3000mm load centres.
- Supplied with two swivel hooks and bow shackles for secure lifting.
- Four-way fork pocket entry for easy storage and manoeuvrability.
- Maximum fork section: 150 x 50 mm at 281 mm centres.
- Zinc-plated heel pins for safe and reliable attachment.
- Bright orange finish for improved visibility and safety.
Operation Instructions:
- Position the forklift forks to align with the jib’s fork pockets.
- Remove the heel pins from the attachment.
- Drive the forks fully into the fork pockets.
- Secure the heel pins directly behind the fork heels and attach the safety lynch pin.
- Position the swivel hook and shackle at the desired lifting point, ensuring the shackle is adequately tightened.
- To extend or retract the boom, remove the ‘T’ bar locating pin. Push or pull the boom handle until the holes align, then reinsert the pin.
- The jib is now ready for operation.
Maintenance Guidelines:
- Inspect weekly for:
- Weld points.
- Wear and distortion of fork pockets and heel pins.
- Damaged or worn components.
- Condition of the swivel hook, safety latch, and shackle.
- Alignment and condition of the extending boom.
- Tighten all bolts and lubricate pivot bars, latches, and locks.
- Treat surface rust with proprietary inhibitors, primers, and paint.
- Report and repair any damage before reuse.
- Certified for six months from manufacture; re-testing required after this period per HSE guidelines.
Health & Safety Notes:
- Operators must be trained in the attachment’s operation and maintenance.
- Ensure the forklift and attachment can handle the intended load.
- Confirm that heel pins and shackle pins are securely tightened before use.
- Only perform vertical lifts; avoid angular lifting.
- Do not shock load the jib under any circumstances.
- Adhere to the safe working load limits at all lifting points.
