Invicta Forklift 240 Litre Wheelie Bin Lifter – Safe and Reliable Handling (IWBL-1)
The Invicta Fork Mounted Wheelie Bin Lifter is the perfect solution for lifting, moving, and emptying 90-240 litre wheelie bins. Designed to meet the growing demand for waste management efficiency, this attachment offers a safe and reliable method for handling bins while reducing manual effort. The lifter includes a winch with a mechanical stop to prevent unwanted movement, ensuring smooth operation and enhanced workplace safety.
Specifications:
- Weight: 87kg
- Centre of Gravity: 775mm
- Load Centre: 1225mm
- Maximum Fork Section: 150mm x 50mm
- Maximum Fork Centres: 475mm
- Safe Working Load: 100kg
Standard Features:
- Winch with Mounting Bracket: Equipped with a 3mm lifting wire for secure operation.

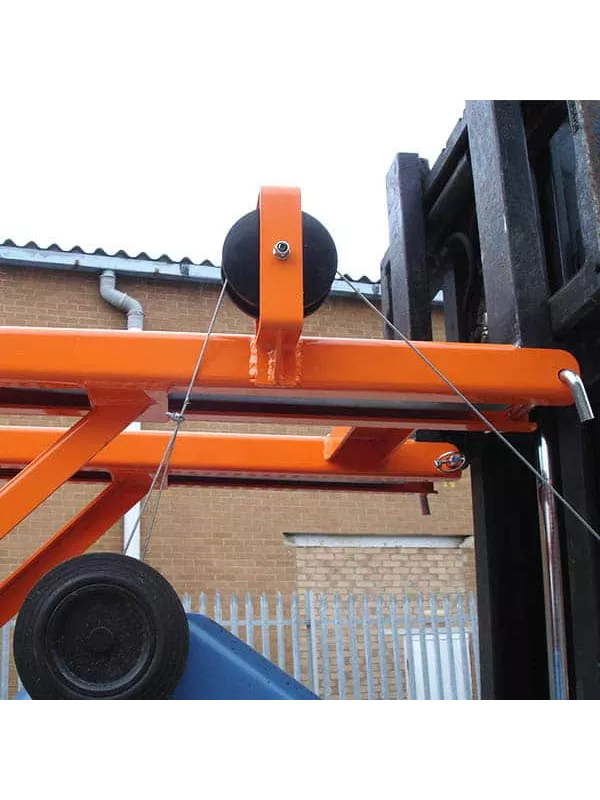

- Rotating Pulley Wheel: Ensures smooth cable operation during lifting and emptying.
- Zinc-Plated Heel Pins: Provide a secure attachment to the forklift.
- Safety-Oriented Design: Painted bright orange for high visibility during operation.
Optional Features:
- Support stand with castors, including 2 swivel and 2 braked wheels, for added versatility.
Operation Instructions:
- Securely position the winch on the left-hand overhead guard leg, ensuring the cable is positioned on the truck's outer face. Use clamping plates and 4 bolt fixings to secure the winch.
- Align the forklift forks with the fork pockets and fully insert them into place.
- Remove the heel pins, insert them behind the fork heels, and secure with safety lynch pins.
- Pull the looped end of the winch cable through the pulley on the attachment.

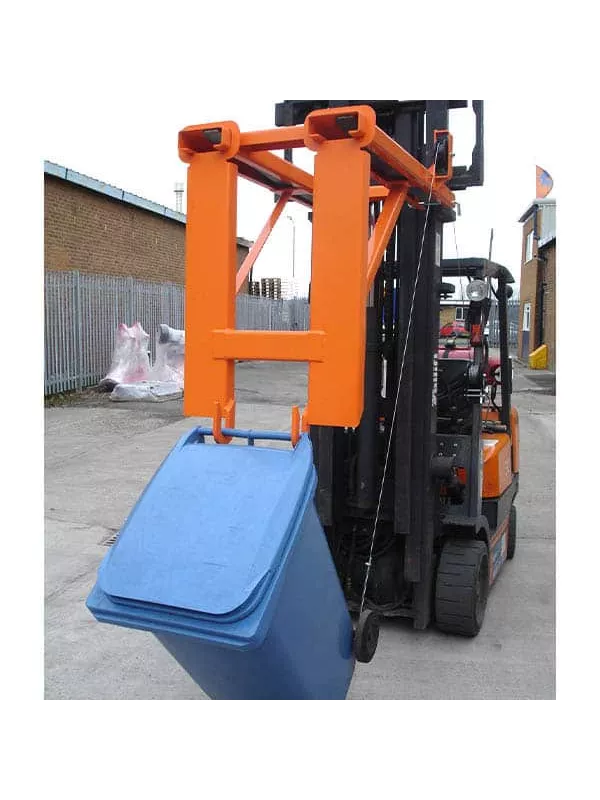

- Approach the bin from the rear, position the profiled hooks under the bin handles, and lift.
- Raise the bin to waist height, secure the looped cable over the left-hand wheel, and lower to a safe level.
- Move to the tipping area, raise the bin to the desired height, and release the winch safety catch.

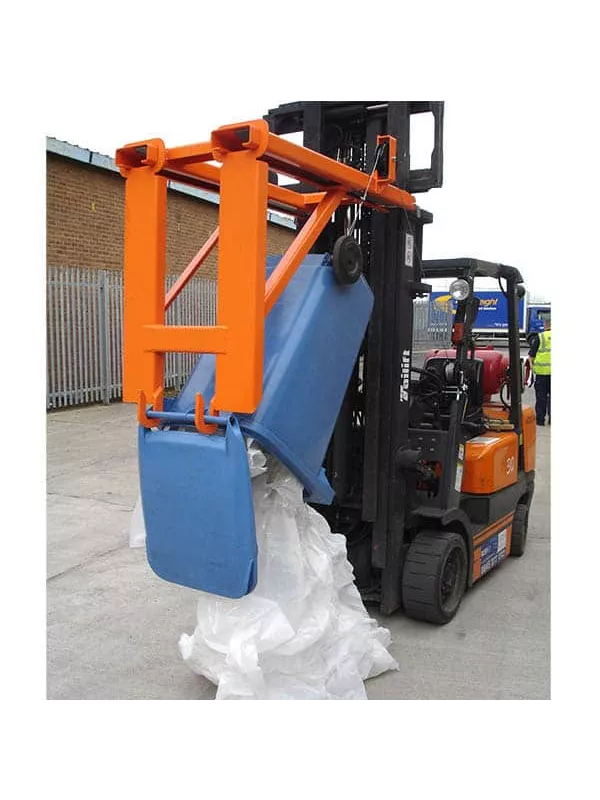

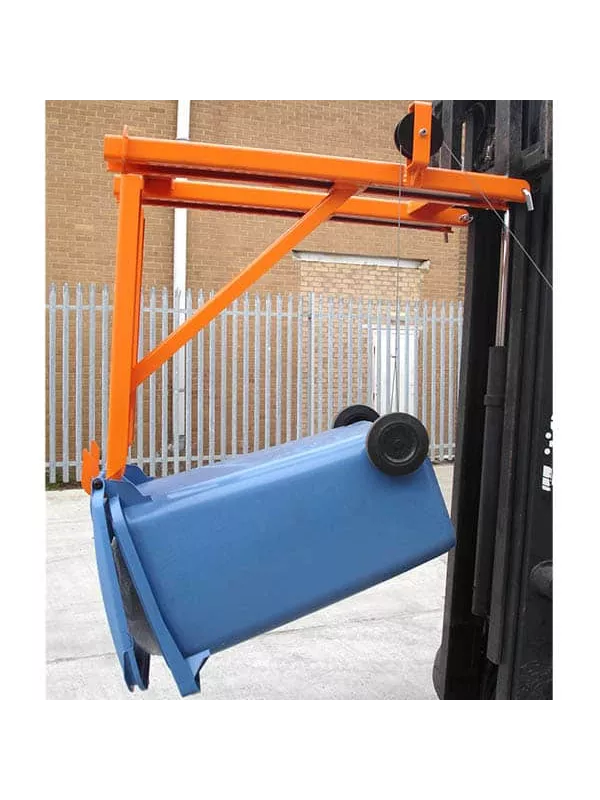

- Wind the winch to rotate the bin and empty its contents. Engage the safety catch to hold the position if needed.
- Once emptied, release the safety catch, return the bin to a vertical position, and lower to the ground.
- Remove the looped cable and prepare for the next lift.
Maintenance Guidelines:
- Inspect weekly, focusing on:
- Weld points for structural integrity.
- Fork pockets and heel pin attachments for wear and distortion.
- Cable, pulley, and winch for damage or wear.
- Treat surface rust regularly with proprietary inhibitors, primers, and paint.
- Re-certify the attachment every six months in compliance with HSE regulations.
Health & Safety Notes:
- Ensure operators are trained in the use and maintenance of the attachment.
- Verify both the forklift and attachment are capable of handling the load.
- Always insert and secure heel pins before use.
- Do not shock load the attachment or operate with the bin in a dangerously high position.
- Maintain control of the winch handle when releasing the safety catch.
The Invicta Fork Mounted Wheelie Bin Lifter offers a safe, efficient, and reliable solution for managing small wheelie bins, making it an essential tool for modern waste management operations.
