Invicta Low Level Skip – Efficient Bi-Product Collection and Disposal (ILUS-1)
Please Note: ILUS-2 is on a 6-7 weeks lead time.

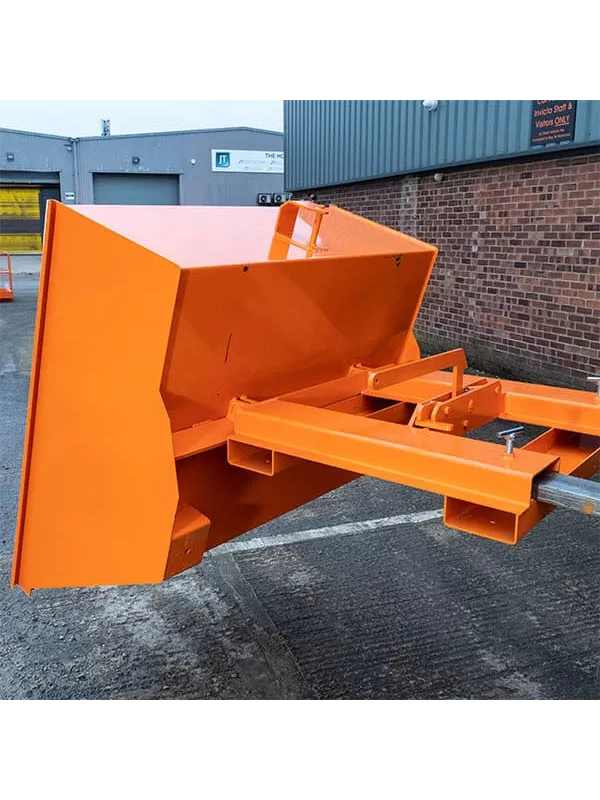

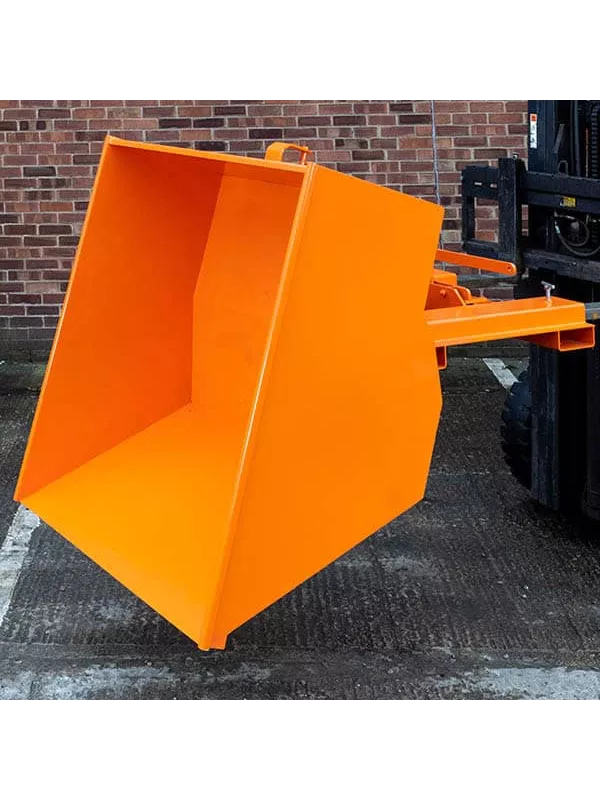

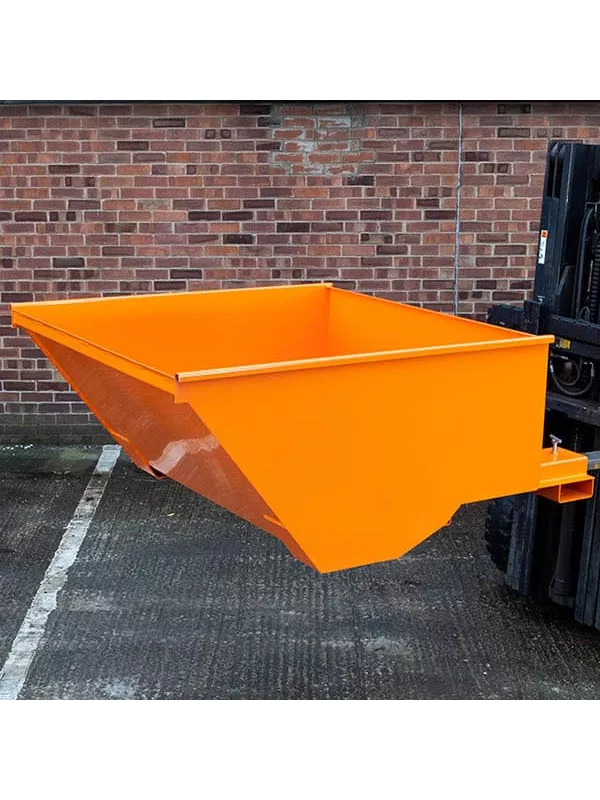

The Invicta Low Level Skip offers a practical solution for collecting bi-products below waist level, making it perfect for placement at the end of conveyors, dross shoots, or manufacturing lines. Supplied as standard with manual operation, this skip can be upgraded with an automatic tipping conversion kit, allowing forklift or telehandler operators to empty the skip without leaving their seat.
Specifications:
- Model ILUS-1:
- Capacity: 0.7kg
- Weight: 215kg
- Centre of Gravity: 630mm
- Length: 1380mm
- Width: 910mm
- Height: 540mm (add 160mm for overall height)
- Fork Length: 530mm
- Model ILUS-2:
- Capacity: 1kg
- Weight: 245kg
- Centre of Gravity: 650mm
- Length: 1380mm
- Width: 1300mm
- Height: 540mm (add 160mm for overall height)
- Fork Length: 530mm
Standard Features:
- Low loading height for convenient access.
- Reinforced leading edge and body sides for durability.
- 4-way fork pocket entry for versatile positioning.

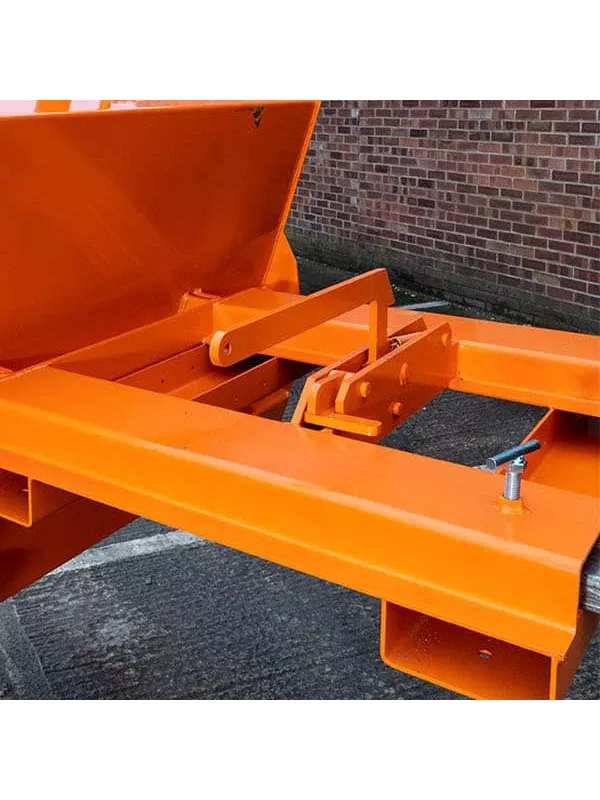

- Secondary locking mechanism to prevent accidental discharge.
- Fully seam welded construction for fluid retention.
- Manual handle override for manual tipping.
- Maximum fork section: 150 x 60 mm at 683 mm centres.
- Zinc-plated twist screws for secure attachment.
- Painted bright orange for improved safety and visibility.
Optional Features:
- Conversion kit for automatic operation.
- 125mm diameter nylon castors.
- Colour finish for waste separation or departmental identification.
Operation Instructions:
To Operate via Release Handle:
- Position forks to align with the skip fork pockets.
- Remove the fork pocket heel pins.
- Drive forks fully into the pockets.
- Insert the heel pins and secure them with a safety lynch pin.
- Transport the skip to the intended tipping area and release the secondary locking mechanism.
- Pull the release handle to empty the skip.
- Re-latch the skip onto the hook and replace the secondary lock.
To Operate via Auto-Release:
- Follow steps 1-4 above.
- Position the skip at the correct height, aligning the actuator plate with the side of the yard skip.
- Lower the skip until the hook release mechanism disengages.
- Empty the skip, pull away, and lower it safely to the ground.
- Re-latch the skip and replace the secondary lock.
Maintenance Guidelines:
- Inspect weekly for:
- Weld points.
- Wear and distortion of fork pockets and thumb screws.
- Damaged components.
- Locks, latches, rockers, and roller guides.
- Automatic mechanisms.
- Ensure all bolts are tightened securely.
- Lubricate pivot bars, latches, and locks.
- Oil the spring and treat surface rust with inhibitors, primers, and paint.
- Report and repair any damage before reuse.
- Certified for six months; re-testing required after this period as per HSE guidelines.
Health & Safety Notes:
- Operators must be trained in the attachment’s use and maintenance.
- Ensure the truck and attachment can handle the load safely.
- Keep clear of the mechanism during operation.
- Engage the safety lock mechanism until emptying is required.
- Avoid driving into fork pockets without retracting thumb screws.
- Do not shock load the skip or empty it using side entry fork pockets.
- Return the skip to ground level for inspection in case of operational failure.
For further information or to request a quote, contact us today.
Approximate lead time: 2-3 days. Model ILUS-2 has a 6-7 week lead time.
Please note: skip lid and skip sold separately.
