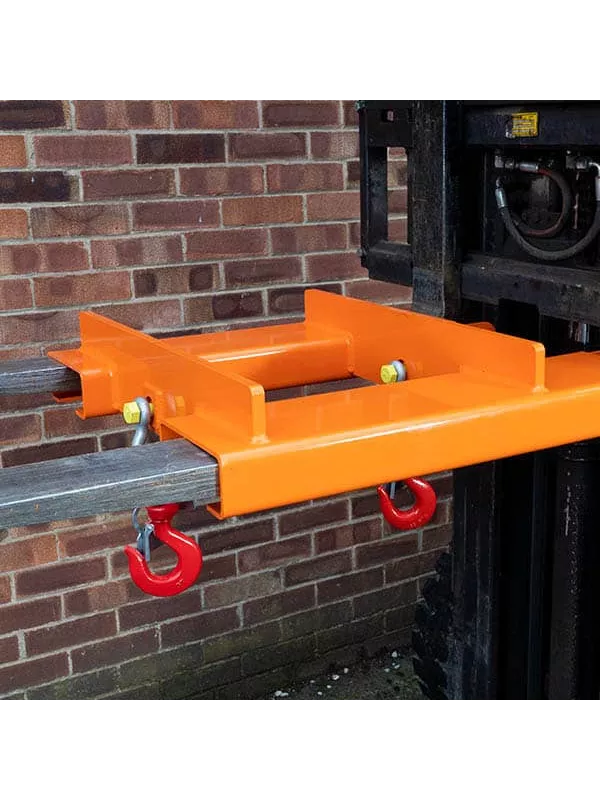

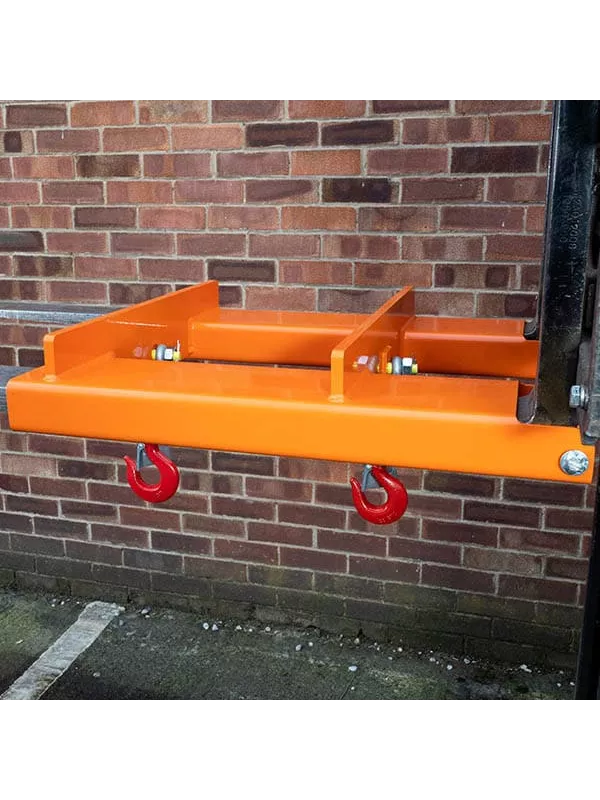

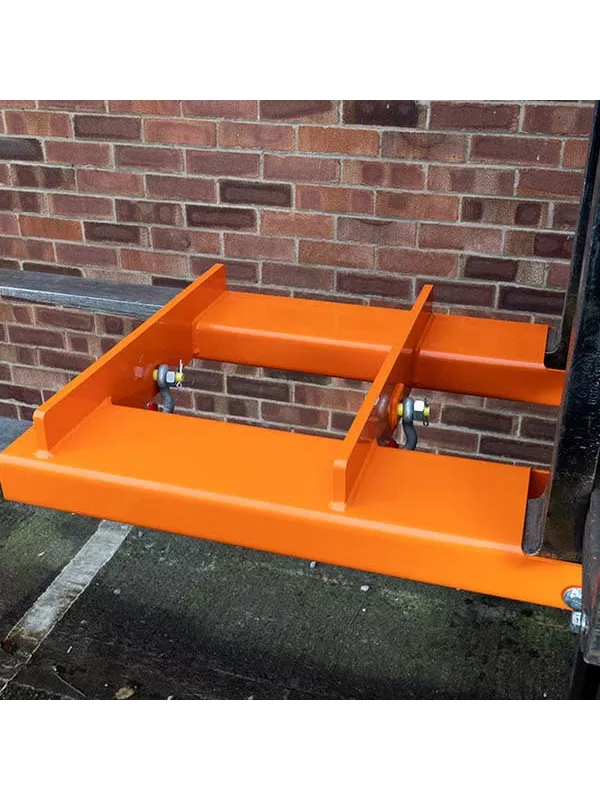

Invicta Fixed Fork Mounted Hook for Efficient Load Lifting (IFH-1)
The Invicta Fork Mounted Hook provides a safe, economical way to transform your forklift into a mobile crane. Designed with two fixed lifting points along the fork blade, this versatile attachment ensures secure handling of heavy and awkward loads. Supplied complete with a swivel hook and bow shackle, it offers multiple lifting options, making it a practical addition to your material handling equipment.
Specifications (By Model):
IFH-1
- Capacity: 1000kg
- Weight: 37kg
- Centre of Gravity (C of G): 350mm
IFH-2
- Capacity: 2000kg
- Weight: 39kg
- Centre of Gravity (C of G): 350mm
IFH-3
- Capacity: 3000kg
- Weight: 42kg
- Centre of Gravity (C of G): 350mm
IFH-4
- Capacity: 4000kg
- Weight: 44kg
- Centre of Gravity (C of G): 350mm
IFH-5
- Capacity: 5000kg
- Weight: 46kg
- Centre of Gravity (C of G): 350mm
Standard Features:
- Two fixed lifting points along the fork blade for versatility.
- Supplied with a single swivel hook and bow shackle.
- Zinc-plated heel pins for secure attachment to the forklift.
- Maximum fork section: 150 x 50mm at 481mm centres.
- Bright orange finish for enhanced visibility and safety.
Operation Instructions:
- Position the forks to the correct width for alignment with the fork pockets.
- Remove the heel pins from the attachment.
- Drive the forks fully into the fork pockets.
- Insert the heel pins directly behind the fork heels and secure with the safety lynch pins.
- Tighten the shackle pin and position the swivel hook for lifting.
- The attachment is now ready for operation.
Maintenance Guidelines:
- Conduct weekly inspections, focusing on:
- Weld point integrity.
- Wear or distortion in fork pockets and heel pin attachments.
- Swivel hook, safety latch, and shackle condition.
- Address any damage or surface rusting with proper inhibitors, primers, and paint.
- Report and rectify damage before reuse.
- Certified for six months from the manufacturing date; re-testing is required per HSE guidelines.
Health & Safety Notes:
- Ensure operators are trained in attachment use and maintenance.
- Verify the forklift and attachment are capable of handling the intended load.
- Insert heel pins correctly and secure them before use.
- Use the attachment for vertical lifts only—no angular or shock loading.
- Always maintain the mast in a vertical position during operation.
- Adhere to the safe working load limits at each lifting point.
Contact us today to request a quote for the Invicta Fork Mounted Hook (IFH-1).
