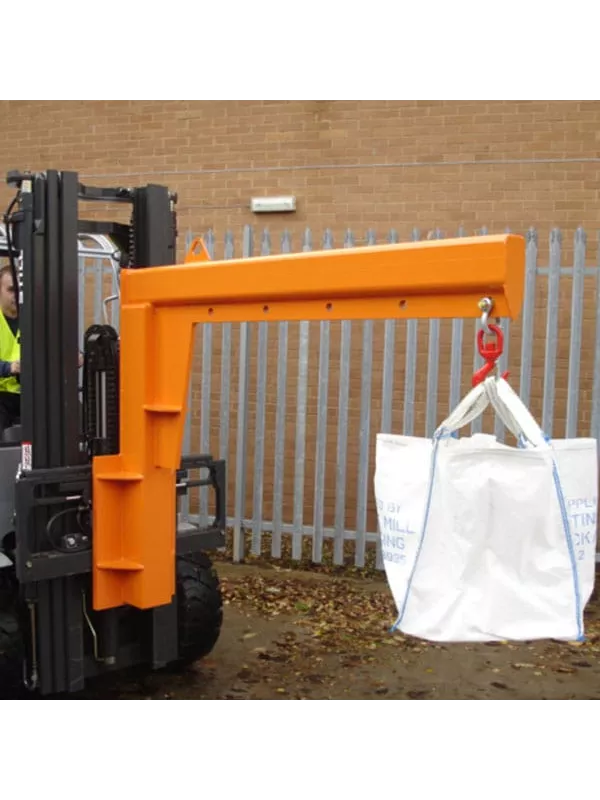

Invicta High Lift Forklift Jib for Superior Lifting Heights (IHJ-1.0)
Invicta High Lift Forklift Jib – Heavy-Duty Industrial Jib Attachment
The Invicta High Lift Forklift Jib is a versatile lifting solution ideal for applications where height clearance is crucial. Whether you need to lift over obstacles or achieve greater reach, this jib attachment ensures maximum efficiency and safety.
Key Features:
- Multi-hook positioning from 1000mm to 1750mm load centres.
- Supplied with a swivel hook and bow shackle for secure lifting.
- Quick-release bottom hangers for fast attachment and removal.
- Lifting eye at centre of gravity for easy mounting onto the forklift.
- Bright orange powder-coated finish for high visibility and safety.
- Available in multiple capacity options, ranging from 1000kg to 7000kg.
Specifications:
Operation:
- Remove existing forks from the forklift carriage.
- Position the jib attachment parallel to the floor.
- Remove quick-release bottom hangers and position the forklift behind the jib back plate.
- Hook the top carriage rail onto the jib back plate ensuring proper alignment.
- Tilt the forklift mast back to the vertical position.
- Reposition the quick-release bottom hangers and insert the safety clip.
- Adjust the hook and shackle to the required lifting point.
- Lift and move loads with precision.
Maintenance & Safety:
- Inspect weekly for weld integrity, wear, and component condition.
- Check quick-release hangers for signs of damage or misalignment.
- Ensure the swivel hook, safety latch, and shackles are in good working order.
- No shock loading – avoid sudden movements that may strain the attachment.
- Only perform vertical lifts – avoid angular lifting.
- Rust prevention – treat surfaces regularly with inhibitors and primers.
- Certified for 12 months from manufacture – requires re-testing after this period.
Ideal for:
✔ Construction & Engineering Sites
✔ Warehouses & Distribution Centres
✔ Heavy-Duty Lifting & Material Handling
✔ Loading & Unloading Over Static Obstacles
Upgrade your lifting operations with the Invicta High Lift Forklift Jib, a trusted industrial solution that offers exceptional reach and heavy-duty performance.
