Invicta Forklift Loadlifter – Designed for Safe Roll Cage Loading and Unloading (LOADLIFTER)

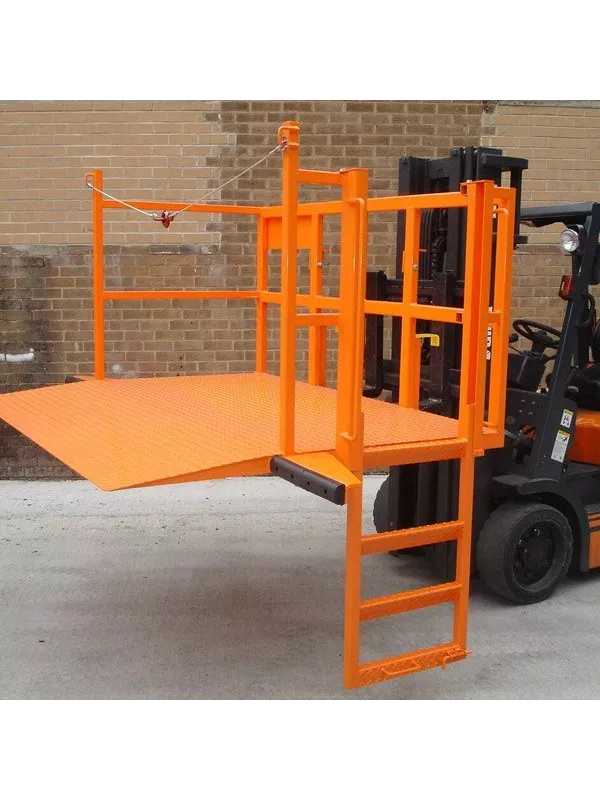

The Invicta Fork Mounted Loadlifter is specifically engineered for the safe and efficient loading and unloading of roll cages onto and from articulated vehicles. Its robust design, combined with safety-focused features, ensures reliable performance in demanding industrial environments.
Specifications:
- Capacity: 1000kg
- Weight: 250kg
- Centre of Gravity: 790mm
- Overall Base Size: 2050mm x 1600mm
- Useable Base Size: 1950mm x 950mm
Standard Features:
- Lowerable Ladder: Provides safe and convenient access for personnel.
- Rubber Buffered Wings: Minimise vehicle damage by limiting entry into the rear of the vehicle.
- Retention Rope: Reduces cage movement during operation.
- Fork Compatibility: Maximum fork section of 100mm x 45mm at 1000mm centres.
- Safety Finish: Painted bright orange for enhanced visibility.
Operation Instructions:
- Position the Loadlifter on level ground and align the forklift forks with the fork pockets.
- Drive the forks fully into the fork pockets.
- Unlatch the safety chains and secure them to the keeper bracket.
- Load two or three roll cages onto the Loadlifter, depending on cage type.
- Re-attach the safety chains and lift the Loadlifter until the yellow retaining brackets engage with the forklift carriage.
- Apply the required back tilt to the forklift mast.
- Approach the lorry square on and align the Loadlifter above the lorry bed height.
- Proceed forward, ensuring the handrails fit within the lorry sides.
- Realign the forklift mast vertically and lower the Loadlifter onto the lorry bed.
- Unlatch the safety chains, remove the cages, lift the Loadlifter, and reverse for the next operation.
Maintenance Guidelines:
- Inspect weekly, focusing on:
- Weld points
- Fork pockets and retaining brackets for wear or distortion
- Safety chains for signs of damage
- Treat surface rust with inhibitors, primers, and paint regularly.
- Grease hinges, latches, and locks lightly to maintain functionality.
- Address any damage or failure immediately before reuse.
Health & Safety Notes:
- Ensure operators are fully trained in the Loadlifter’s operation and maintenance.
- Apply the forklift handbrake when stationary or operating the Loadlifter.
- Verify retaining brackets are correctly positioned before each use.
- Do not exceed the maximum load capacity of 1000kg.
- Maintain a slow, steady pace at ground level when moving or positioning the Loadlifter.
- Always drive with the Loadlifter in the lowest possible position.
The Invicta Fork Mounted Loadlifter is a reliable solution for roll cage handling, offering safety, efficiency, and durability for industrial use.
