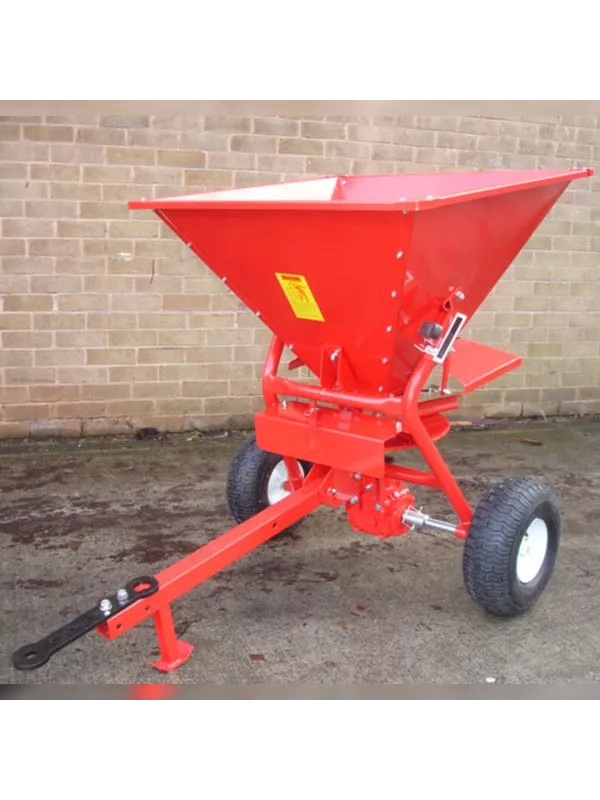

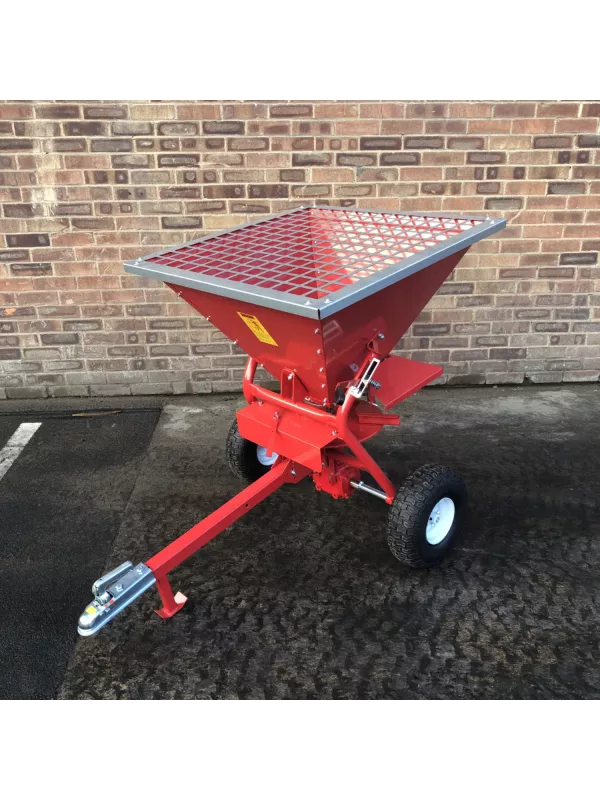

Invicta Mini Towable Spreader – Effective Salt Distribution for Private Roads and Yards (IMG-4)

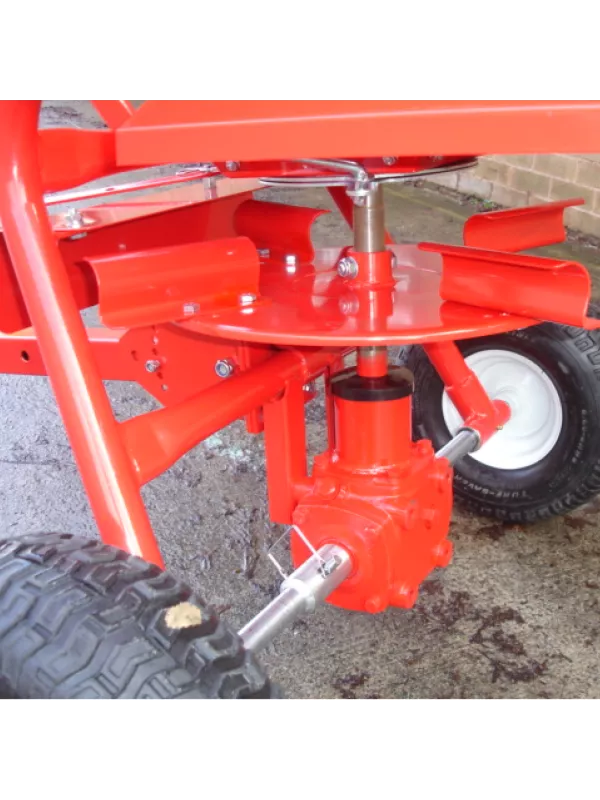

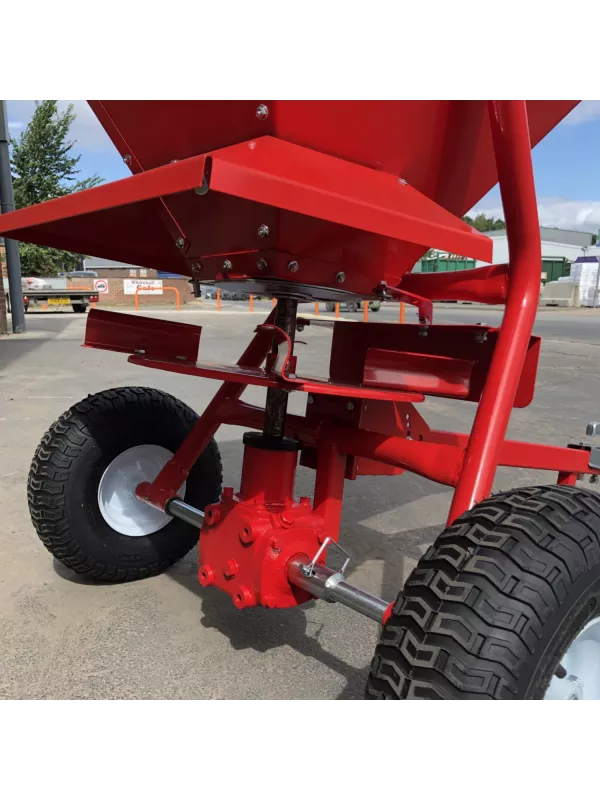

The Invicta Mini Towable Spreader is an efficient solution for salting private access roads and goods yards. Designed for use with forklifts and tug machines, the spreader is towed using either a towing eye or ball hitch. Its contact axle wheels and gearbox ensure precise and uniform salt distribution without the need for electrical or hydraulic connections. Ideal for maintaining safety on icy surfaces, this spreader ensures economical usage and reliable operation.
Specifications:
- Model IMG-4:
- Capacity: 190 litres
- Hopper Opening Size: 860mm
- Hopper Height: 590mm
- Weight: 90kg
Standard Features:
- Adjustable flow control to regulate salt usage and spread width.
- Agitator mounted at the base of the hopper to minimise blockages.
- Supplied with both towing eye and ball hitch for versatile towing options.
- Painted red for visibility and safety.
- Large pneumatic tyres for smooth operation.
Operation Instructions:
- Position the forklift truck, leaving sufficient room behind the counterweight for safe fitting of the spreader.
- Attach the spreader using:
- Towing Eye: Lift the tow pin on the forklift counterweight, position the towing eye into the counterweight slot, and drop the tow pin through the towing eye.
- Ball Hitch: Align the spreader with the towing vehicle, lift and pull the ball hitch handle, position it over the towbar ball, and push the handle down to lock.
- Adjust the hopper to ensure it is vertical by selecting the appropriate hole in the diagonal adjustable arm for even salt distribution.
- Fill the hopper with dry white rock salt only.
- Adjust the flow restriction slide arm to control the level of salt flow.
- Tow the spreader to the desired area for salting.
- Close the flow restriction slide arm after spreading is complete.
Maintenance Guidelines:
- Weekly inspections should focus on:
- Weld points.
- Damaged components.
- Locks and latches.
- Pivot points.
- Agitator cleanliness and movement.
- Tyre pressure (correct PSI).
- Ensure all bolts are tightened.
- Lubricate around the axle base regularly.
- Address rust with inhibitors, primers, and paint.
- Store in a sheltered environment when not in use.
- Wash the unit with clean water after each use, paying attention to moving parts like wheels, gearbox, and axle.
- Report and repair any damage before reuse.
Health & Safety Notes:
- Operators must be trained in the spreader’s use and maintenance.
- Keep clear of the mechanism during operation.
- Take wide arcs when turning corners to prevent sliding.
- Adjust angles only when the vehicle is stationary and the spreader is salt-free.
- This unit is suitable for private land only and is not for use on public roads.
- Disconnect the spreader from the towing vehicle and lift the drive wheel off the ground before performing maintenance.
- Do not stand on the unit under any circumstances.
- Use dry white rock salt only; other materials can cause blockages.
For pricing and availability, contact us or request a quote today.
