Moravia BLACK BULL Heavy Duty Pallet Racking Protectors – Maximum Safety for Warehouses (P197.15.928)
The Moravia BLACK BULL Heavy Duty Pallet Racking Protectors shield racking uprights and structures from damage. Built from heavy-duty steel, available in right-angle and U profiles, with optional guide rollers for smooth pallet handling.
Essential Protection for Pallet Racking and Structural Supports

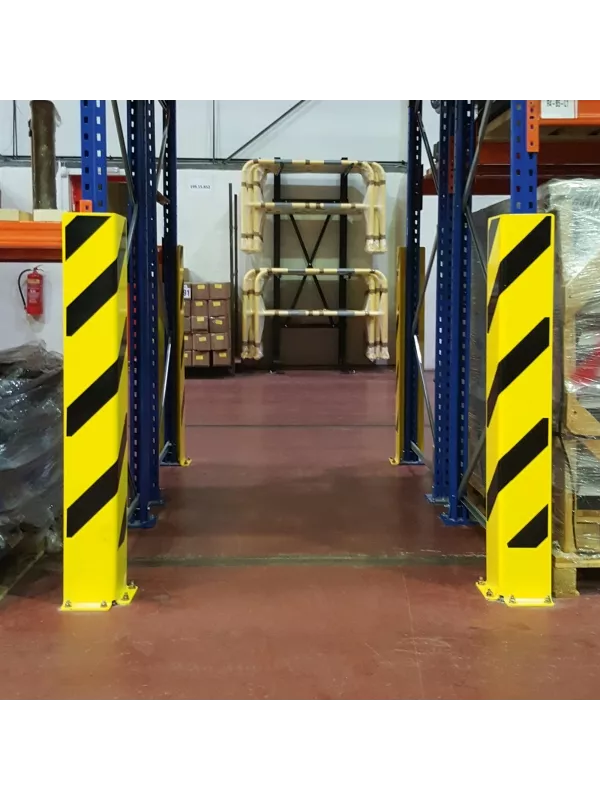

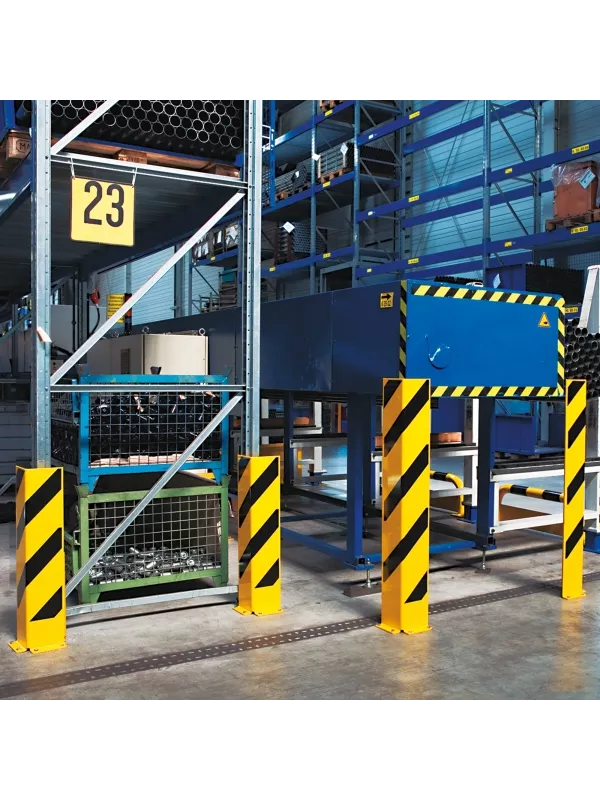

The Moravia BLACK BULL Heavy Duty Pallet Racking Protectors are designed to safeguard vulnerable pallet racking uprights, end frames, and structural elements from potentially hazardous damage caused by forklifts, trolleys, and other warehouse equipment. Ideal for protecting corners, doorways, and building edges, these racking protectors ensure workplace safety and reduce costly repairs.
Key Features
- Heavy Duty Construction: Built with 5mm or 6mm thick steel for superior durability.
- Versatile Applications: Suitable for racking uprights, partitions, mezzanine supports, and more.
- Highly Visible Design: Powder-coated yellow with black bands for enhanced visibility.
- Easy Installation: Secure fixing with anchorage bolts (supplied separately).
- Conforms to Safety Standards: Meets DIN 4844 safety guidelines for workplace protection.
- Optional Guide Rollers: Facilitates smooth pallet placement and removal at floor-level locations.
Specifications
- Widths: 160mm
- Heights:
- 400mm
- 800mm
- 1,200mm
- Gauge Options:
- 5mm steel (Right-angle profile)
- 6mm steel (Right-angle and U profile)
- Profiles:
- Right-angle profile
- U-profile
- Finish: Powder-coated yellow with black bands for corrosion resistance and visibility.
Guide Roller Specifications
- Roller Material: Polyimide
- Roller Dimensions:
- Height: 110mm
- Distance from Floor: 75mm to bottom edge
- Steel Frame Dimensions:
- Width: 160mm
- Height: 400mm
- Gauge: 6mm steel
- Fixing bolts: 12 x 100mm bolts (supplied separately)
- Number of fixing bolts per protector:
- 4 bolts for 400mm, 800mm, or 1,200mm Right-angle profiles
- 6 bolts for 400mm U-profile
Model Details
- 400 x 160 x 5mm Right-angle profile: Model P197.15.928, 8kg
- 400 x 160 x 6mm Right-angle profile: Model P197.13.182, 9kg
- 800 x 160 x 6mm Right-angle profile: Model P197.14.605, 16kg
- 1,200 x 160 x 6mm Right-angle profile: Model P197.18.380, 22kg
- 400 x 160 x 6mm U-profile: Model P197.18.365, 11kg
Applications
The Moravia BLACK BULL Heavy Duty Pallet Racking Protectors are ideal for:
- Protecting pallet racking uprights and end frames.
- Safeguarding machine guards, partitions, and mezzanine support columns.
- Preventing damage to concrete columns and structural supports.
- Enhancing visibility and safety in high-traffic areas.
Designed to deliver exceptional durability and protection, these racking protectors minimise the risk of workplace accidents and structural damage. Their highly visible design and optional guide rollers ensure safety and efficiency in even the busiest environments.
